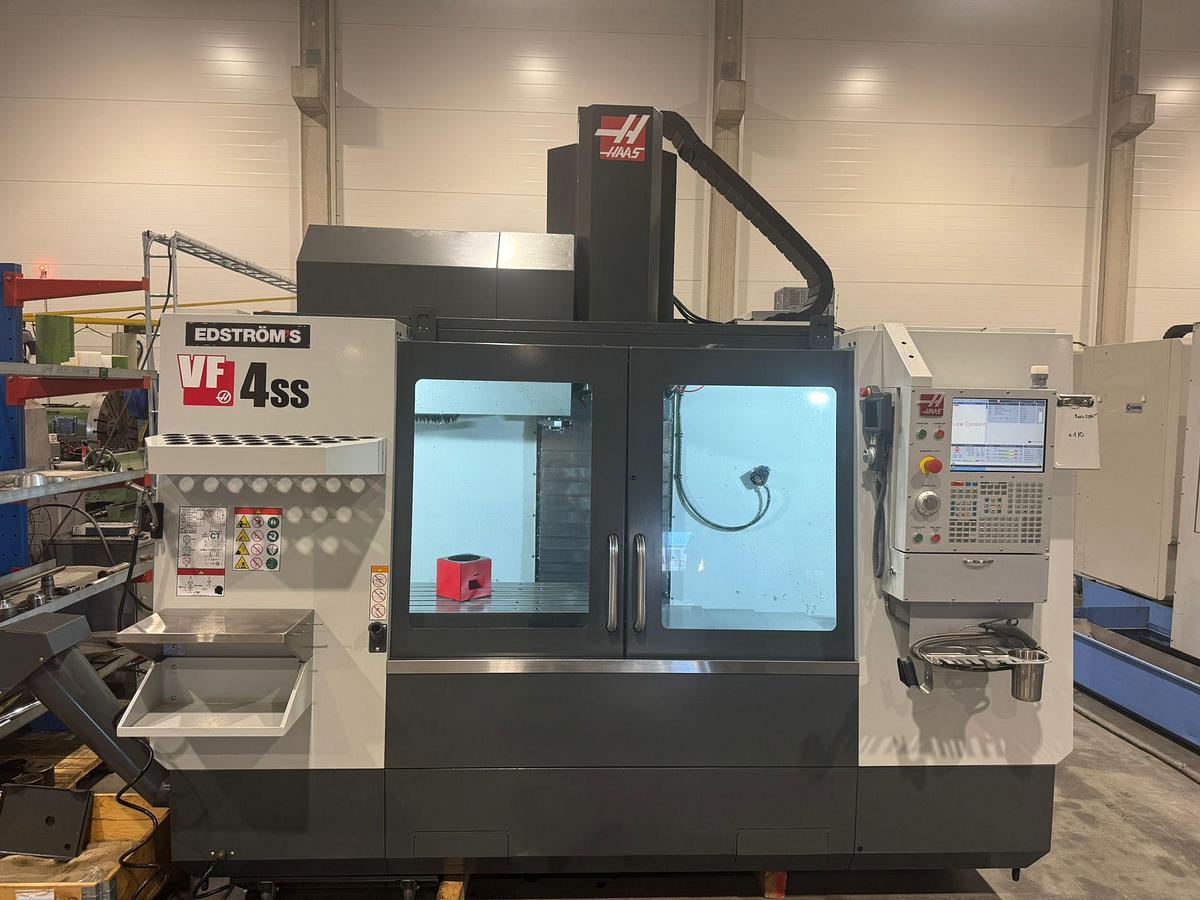

2022 Haas VF-4SS

Spindle speed range: 12000 1/MIN

Spindle motor power: 22.4 kw

X-AXIS Movement: 1270 mm

Y-AXIS Movement: 508 mm

Z-AXIS Movement: 635 mm

Table: 1321 x 495 mm

Distance table to spindle nose 742 mm

Iso 40

ATC 30 + 1 positions

Length 52,0 in 1321 mm

Width 18,0 in 457 mm

T-Slot Width 0,626 in to 0,630 in 15,90 mm to 16,00 mm

T-Slot Center Distance 3,15 in 80 mm

Number of Std T-Slots 5 5

Max Weight on Table (evenly distributed) 1750 lb 794 kg

Max Rating 30,0 hp 22,4 kW

Max Speed 12000 rpm 12000 rpm

Max Torque 90,0 ft-lbf @ 2000 rpm 122,0 Nm @ 2000 rpm

Drive System Inline Direct-Drive Inline Direct-Drive

Taper CT or BT 40 CT or BT 40

Bearing Lubrication Air / Oil Injection Air / Oil Injection

Cooling Liquid Cooled Liquid Cooled

Tool Changer S.A.E Metric

Type SMTC SMTC

Capacity 30+1 30+1

Max Tool Diameter (full) 2,5 in 64 mm

Max Tool Diameter (adjacent empty) 5,0 in 127 mm

Max Tool Length (from gage line) 13 in 330 mm

Max Tool Weight 12 lb 5,4 kg

Tool-to-Tool (avg) 1,8 s 1,8 s

Chip-to-Chip (avg) 2,4 s 2,4 s

Chip conveyor

High pressure through spindle 20 bar

4th axis preparation

Coolant tank 208 Liter

Power outage module

HaasConnect

Sync Tapping

programmable water flow

programmable air gun

WIPS – Wireless Intuitive Probing System

Coordinate rotation and scaling

High speed milling

Haas Spindle orientation

Visual part programming system

The machine is available for inspection and test run at our stock!
