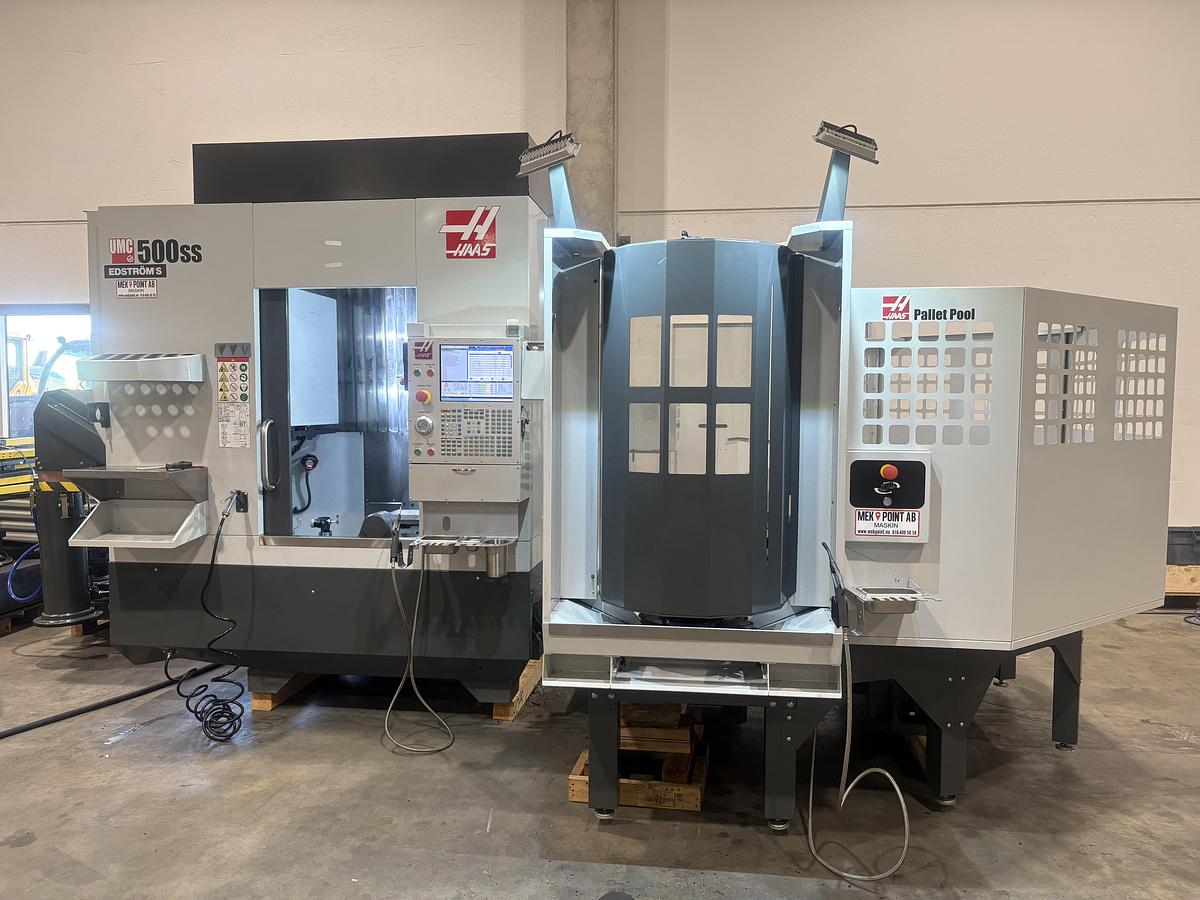

2021 Haas UMC 500 SS

X Axis 24,0 in 610 mm

Y Axis 16,0 in 406 mm

Z Axis 16,0 in 406 mm

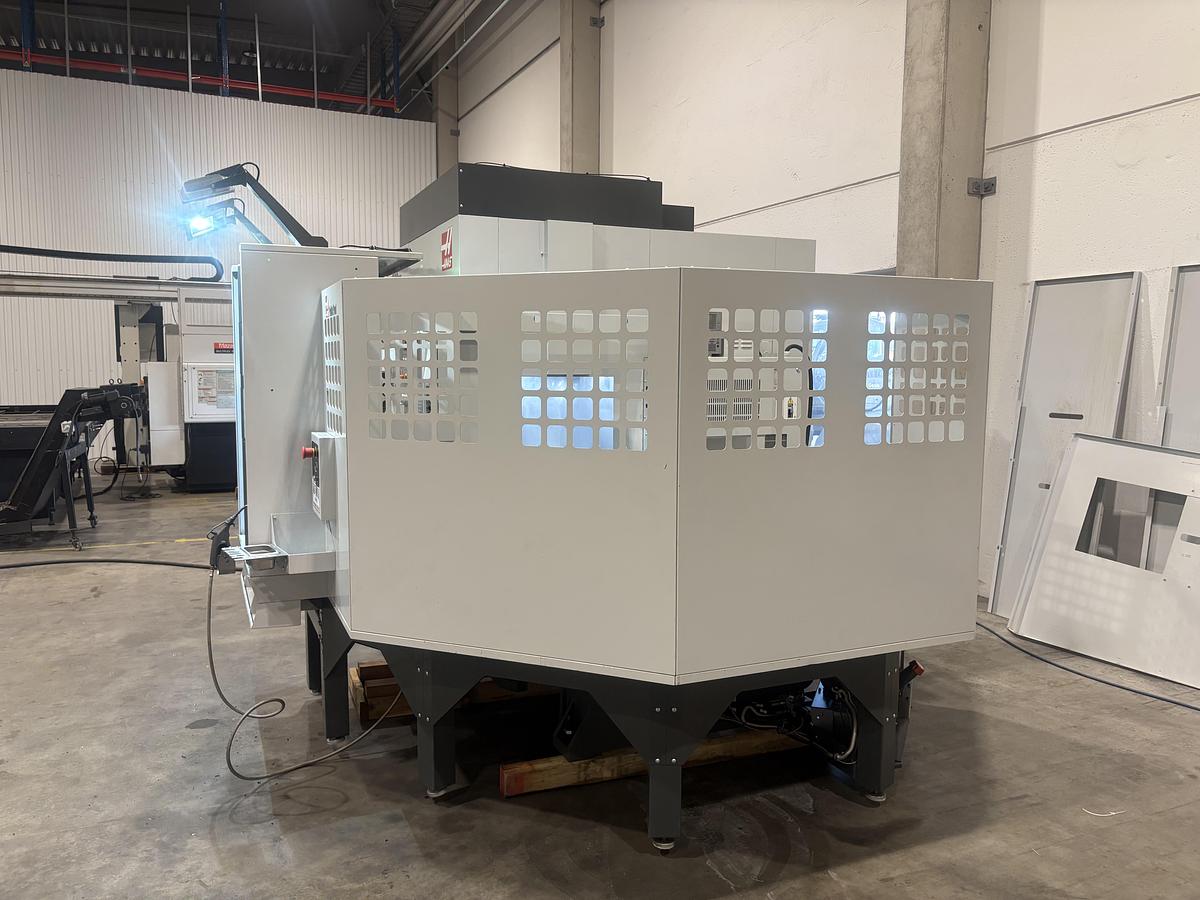

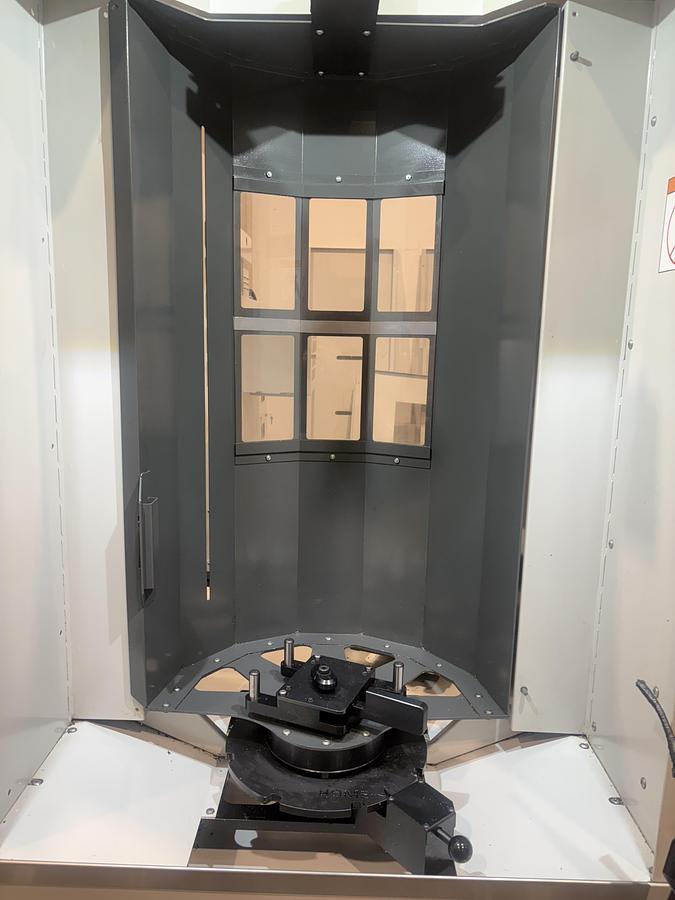

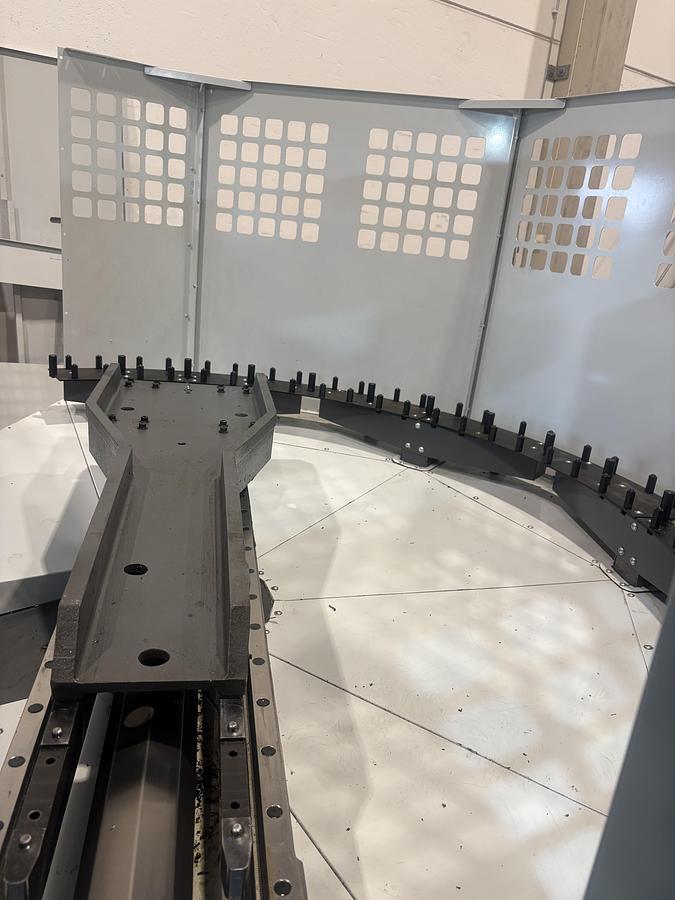

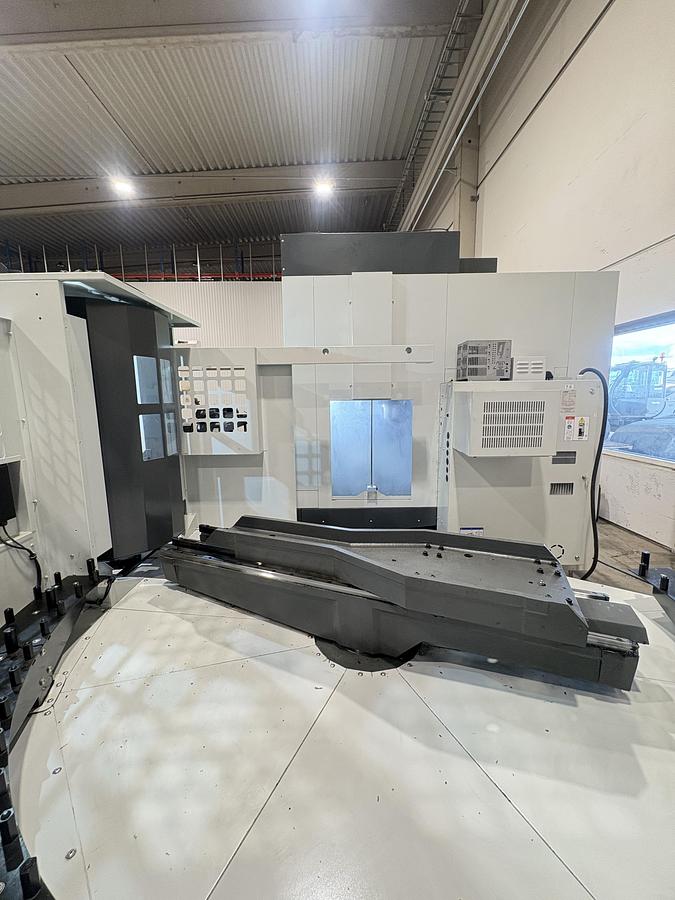

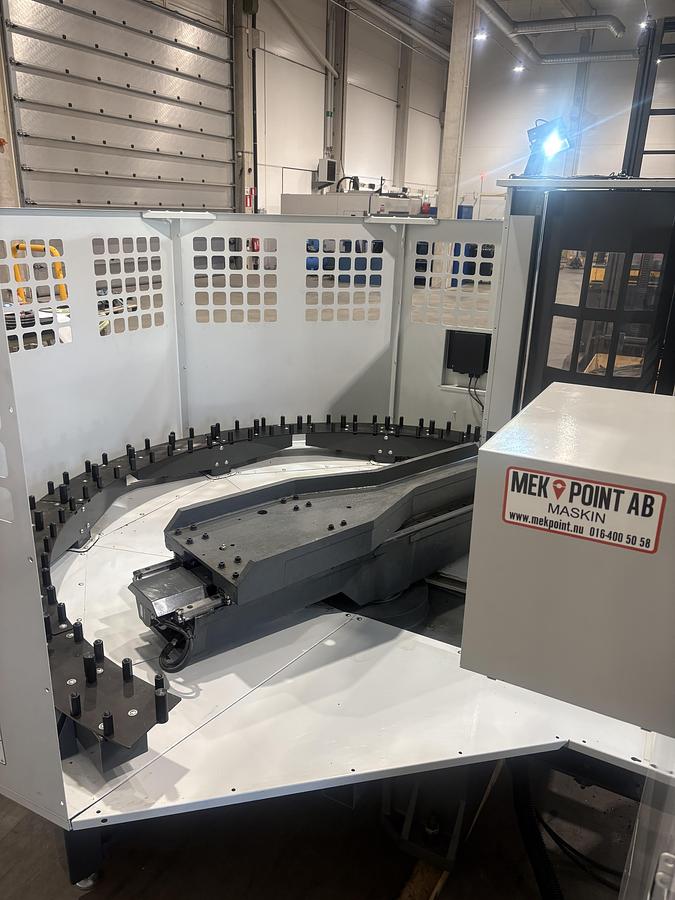

10+1 palettpool, UMC

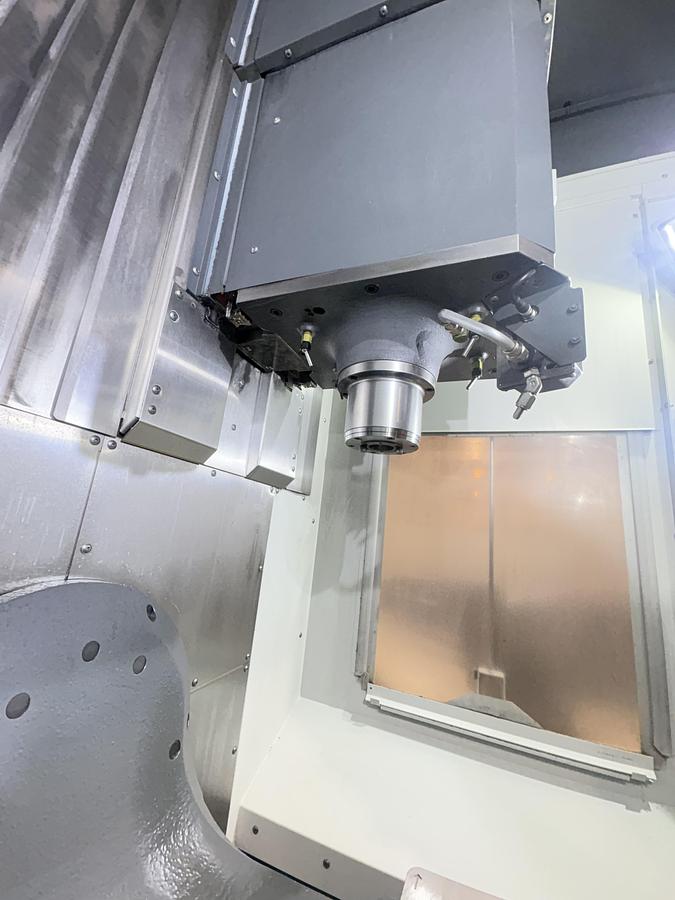

Max Speed 15000rpm

Taper BT40

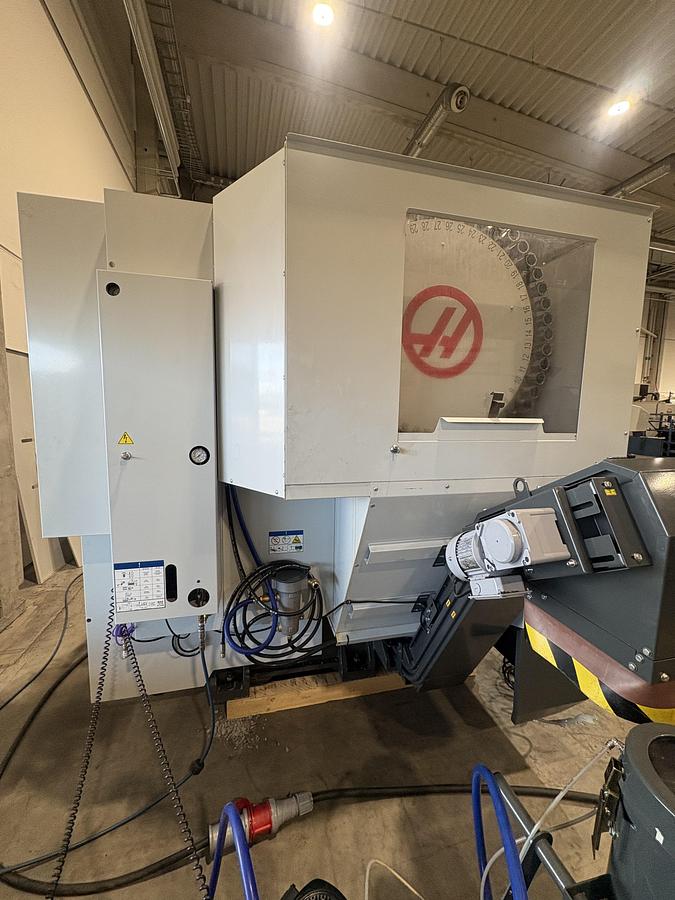

Capacity 50+1 magazine

programmable coolant nozzle

Air through spindle

coolant through spindle

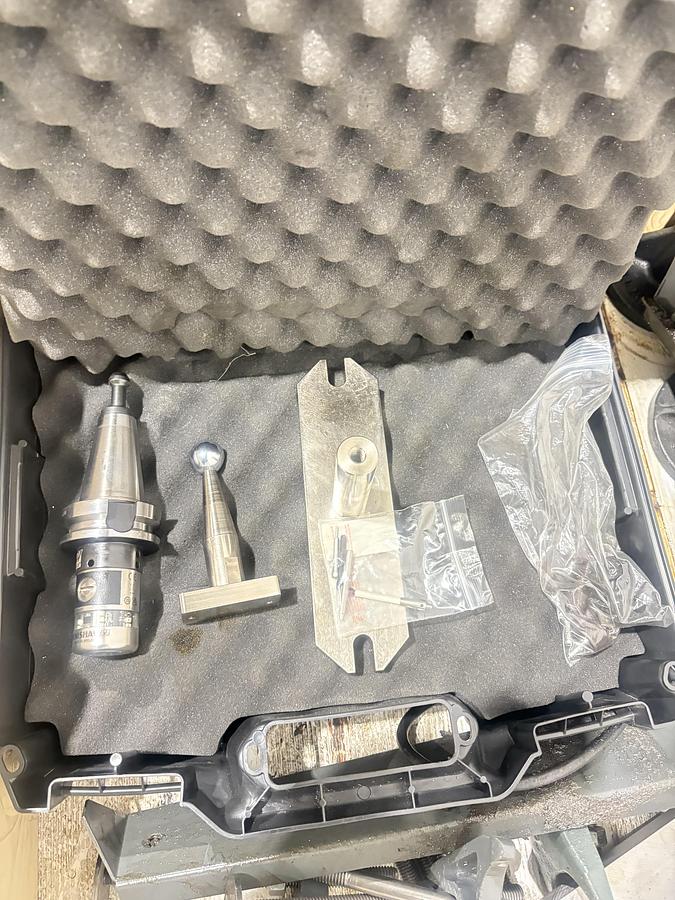

Renishaw probe

WIFI-camera

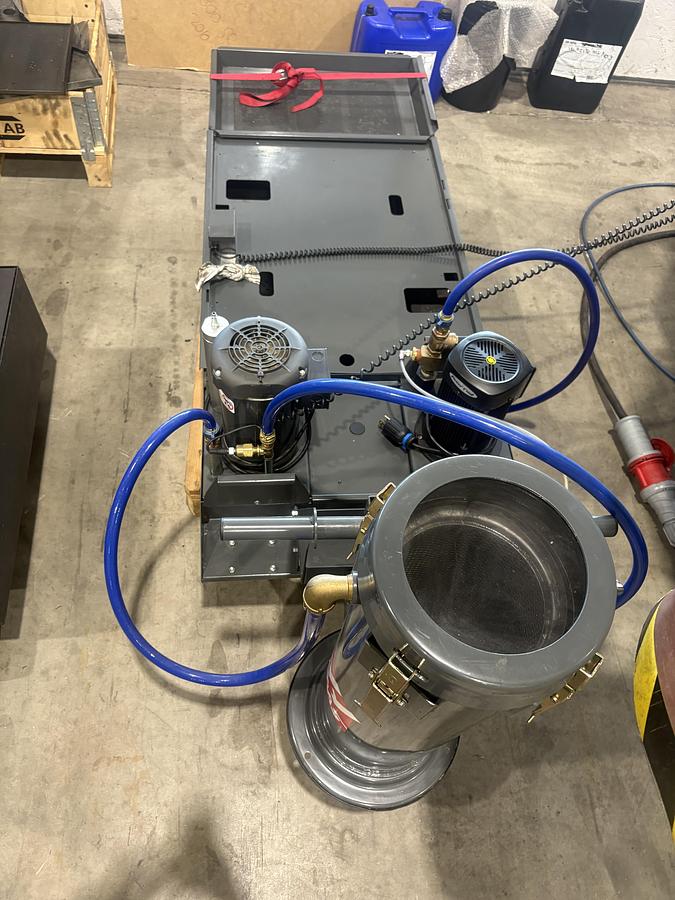

Extra coolant filter

B Axis - Tilt S.A.E Metric

Travel 120 ° to 35- °

Max Torque 1854 ft-lbf 2514 Nm

Brake Torque 900 ft-lbf 1220 Nm

C Axis - Rotation S.A.E Metric

Travel 360 ° 360 °

Max Torque 1854 ft-lbf 2514 Nm

Max Part Swing 18,0 in 457 mm

Brake Torque 900 ft-lbf 1220 Nm

Platter Diameter 15,70 in 400 mm

Max Weight on Platter 500 lb 226,8 kg

Max Weight on Platter w/Pallet Pool 200 lb 90,7 kg

T-Slot Width 0,626 in to 0,630 in 15,90 mm to 16,00 mm

Number of Std T-Slots 5 5

T-Slot Center Distance 2,48 in 63 mm

Max Tool Diameter (full) 2,5 in 64 mm

Max Tool Diameter (adjacent empty) 5,0 in 127 mm

Max Tool Length (from gage line) 12 in 305 mm

Max Tool Weight 12 lb 5,4 kg

Coolant Capacity 55 gal 208 L
