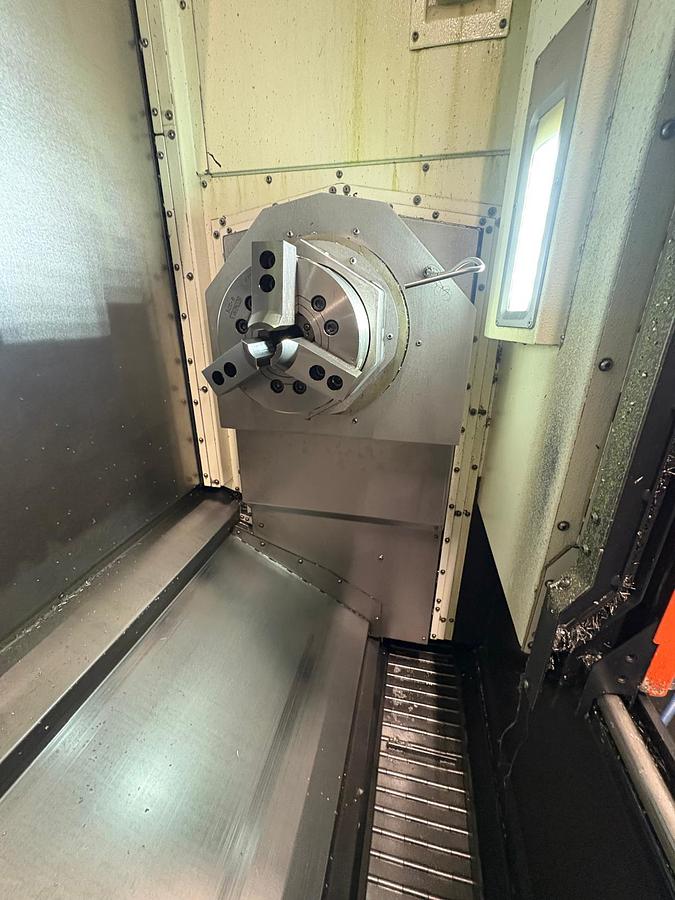

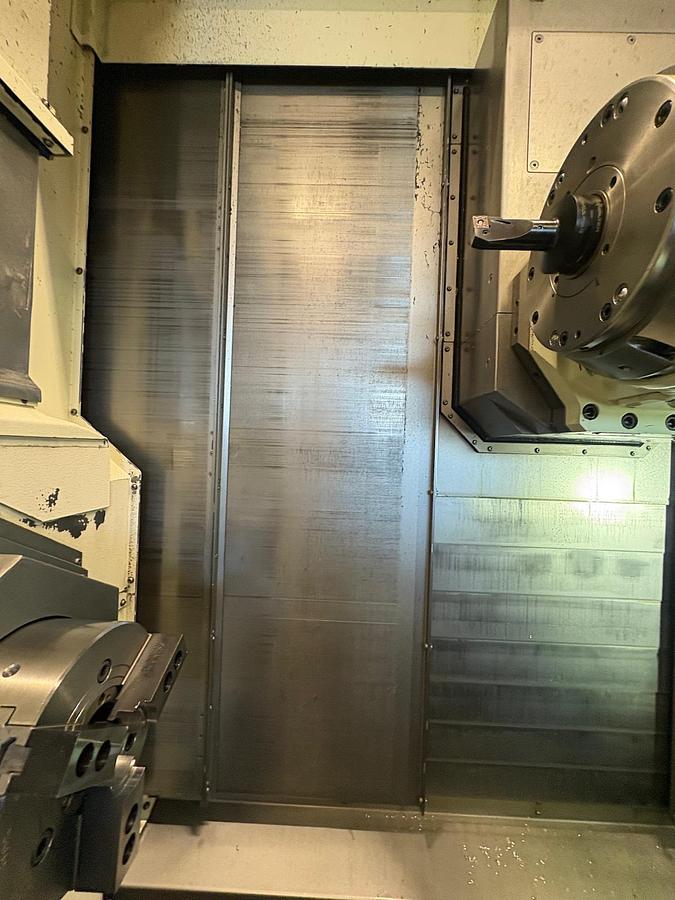

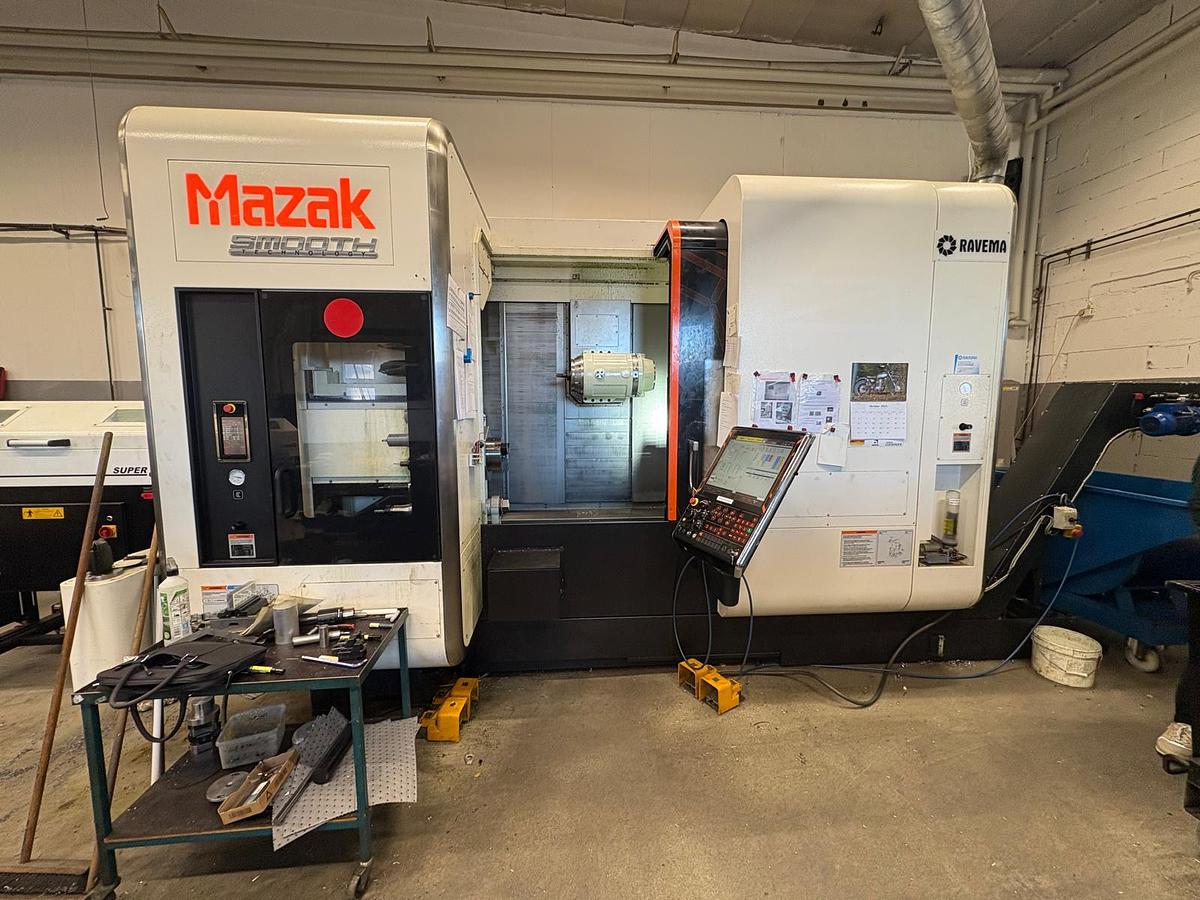

2017 Mazak Integrex I 200 S

New spindel 2025-08

yearly service by Mazak Servicecenter.

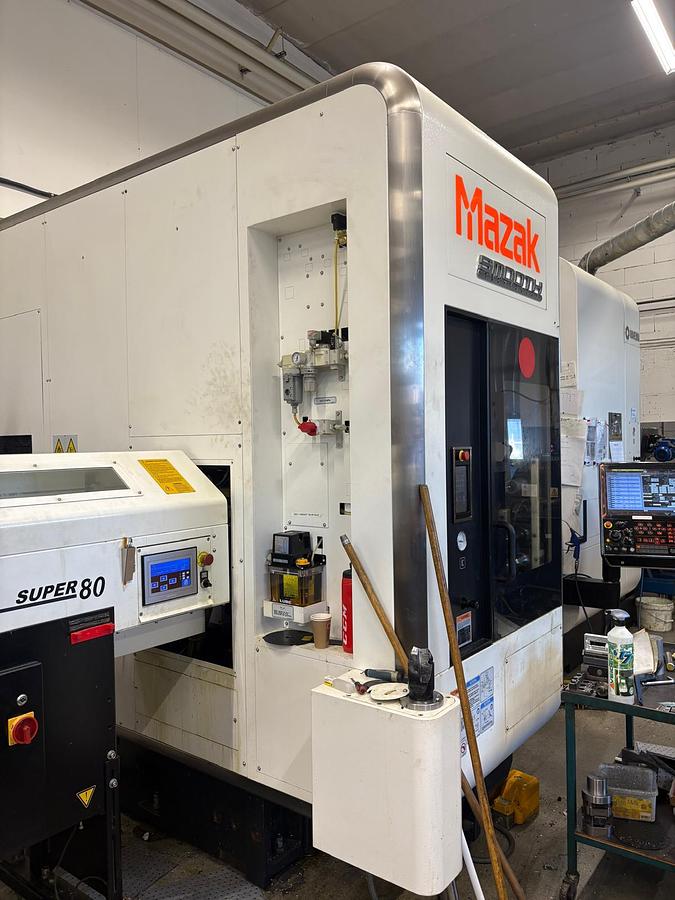

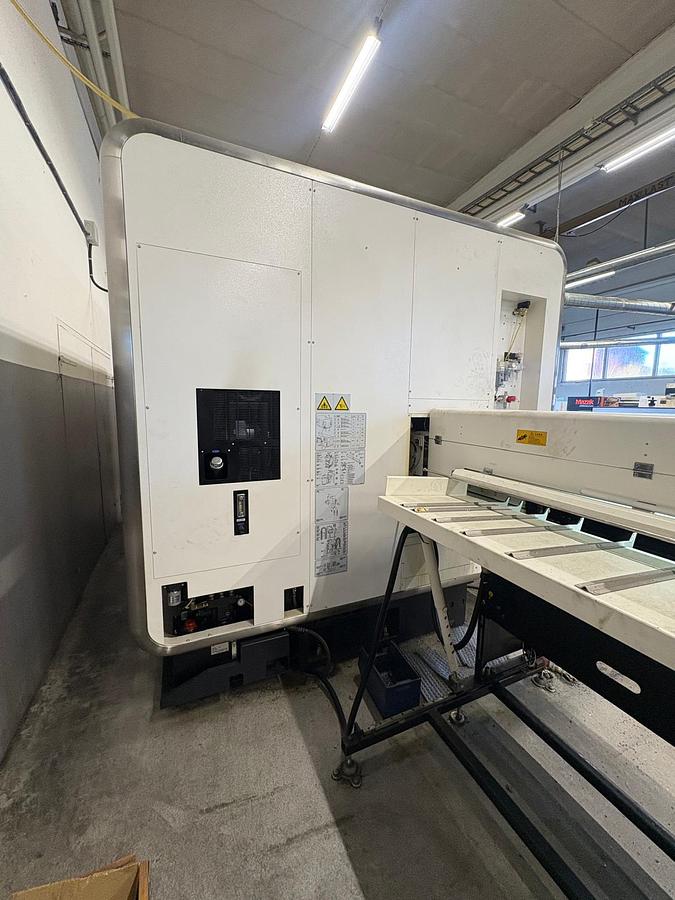

includes bar feeder Super 80

Max swing Ø 658 mm

Swing over X-slide Ø 658 mm

Swing when Y-axis is operating Ø 658 mm

Max turning diameter Ø 658 mm

Max turning diameter from bar Ø 51 mm (option Ø 65)

Max part length 1011mm

X axis: 615mm

Y axis: +/-130mm

z axis: 1077mm

B axis: 0,0001Deg / 240°

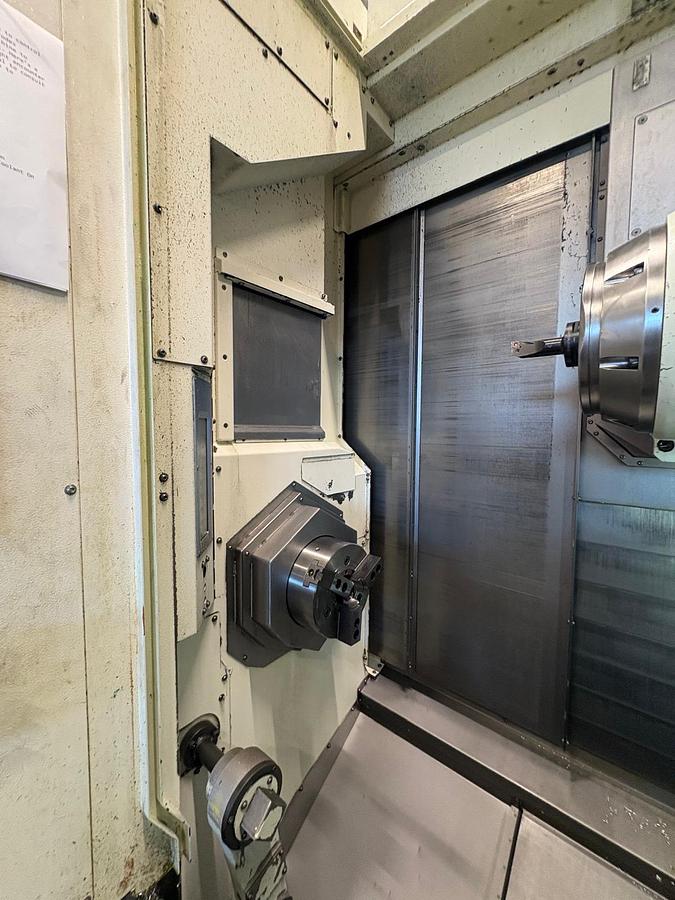

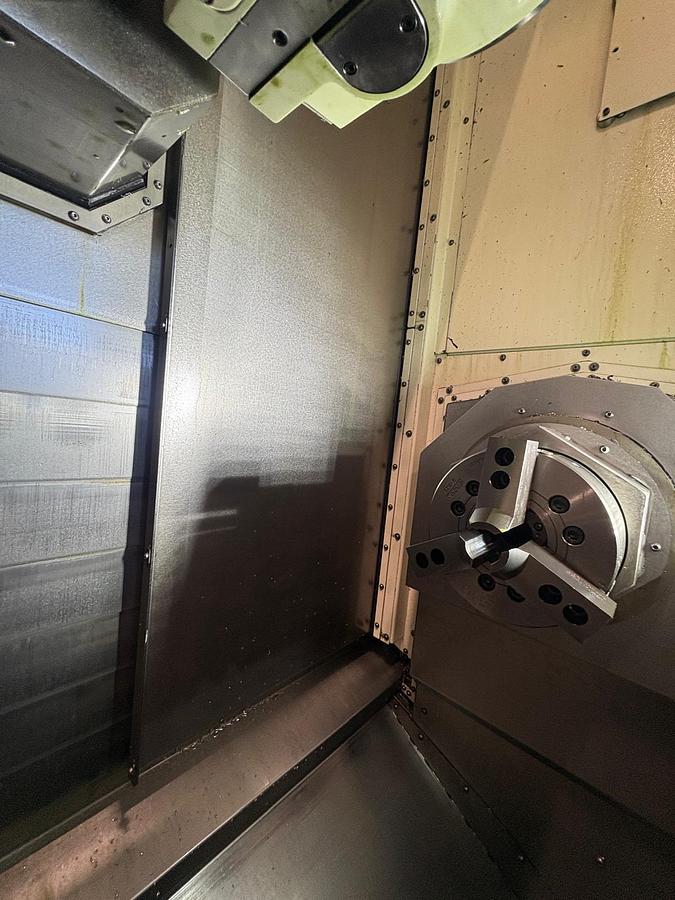

Spindle 1

Spindle nose JIS A2-6

Spindle bore 76 mm

Through-hole 51 mm (option Ø 65)

Spindle motor AC 22 kW 40% ED

Speed range 35-5000 rpm

Number of speed ranges Direct drive

Max torque 467 Nm 25% ED

Max part weight including chuck 300 kg

Center height from floor 1235 mm

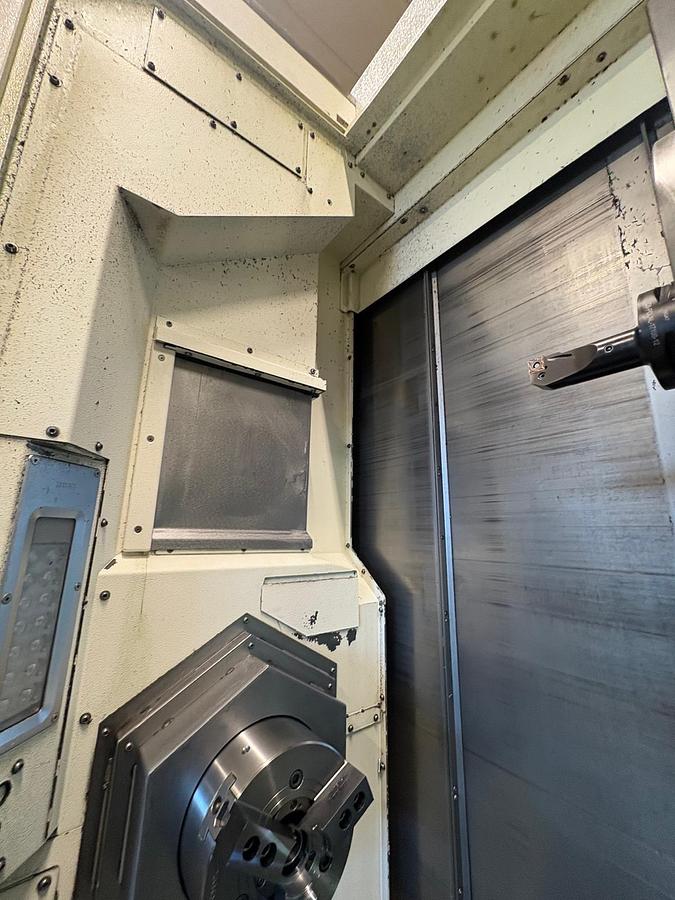

Spindle 2

Spindle nose JIS A2-6

Spindle bore 76 mm

Through-hole Not applicable (option Ø 65)

Spindle motor AC 18.5 kW 40% ED

Speed range 33-5000 rpm

Number of speed ranges Direct drive

Max torque 325 Nm 40% ED

Max part weight including chuck 300 kg

Center height from floor 1235 mm

C-axis 1 Type Direct drive Rapid feed 555 rpm

Working feed 1-5000 degrees/min

Minimum programmable increment 0.0001 degree

C-axis 2 Type Direct drive Rapid feed 555 rpm

Working feed 1-5000 degrees/min

Minimum programmable increment 0.0001 degree

W-axis Movement 1066

Rapid feed 30 m/min

B-axis B-movement 240 degrees

Max machining feed (ISO) 40 rpm

Minimum programmable increment 0.0001 degree

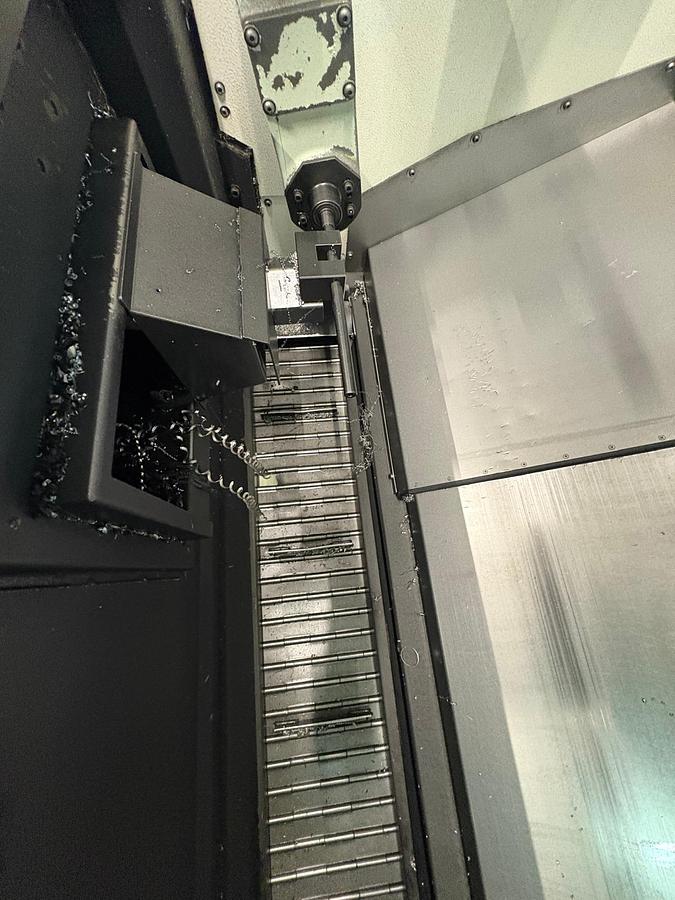

Tool Holder Type: Tool changer

Tool Shank Size: 25 x 25 mm

Tool Change Time, tool to tool: 1.3 seconds

Chip-to-chip time, average: 8 seconds

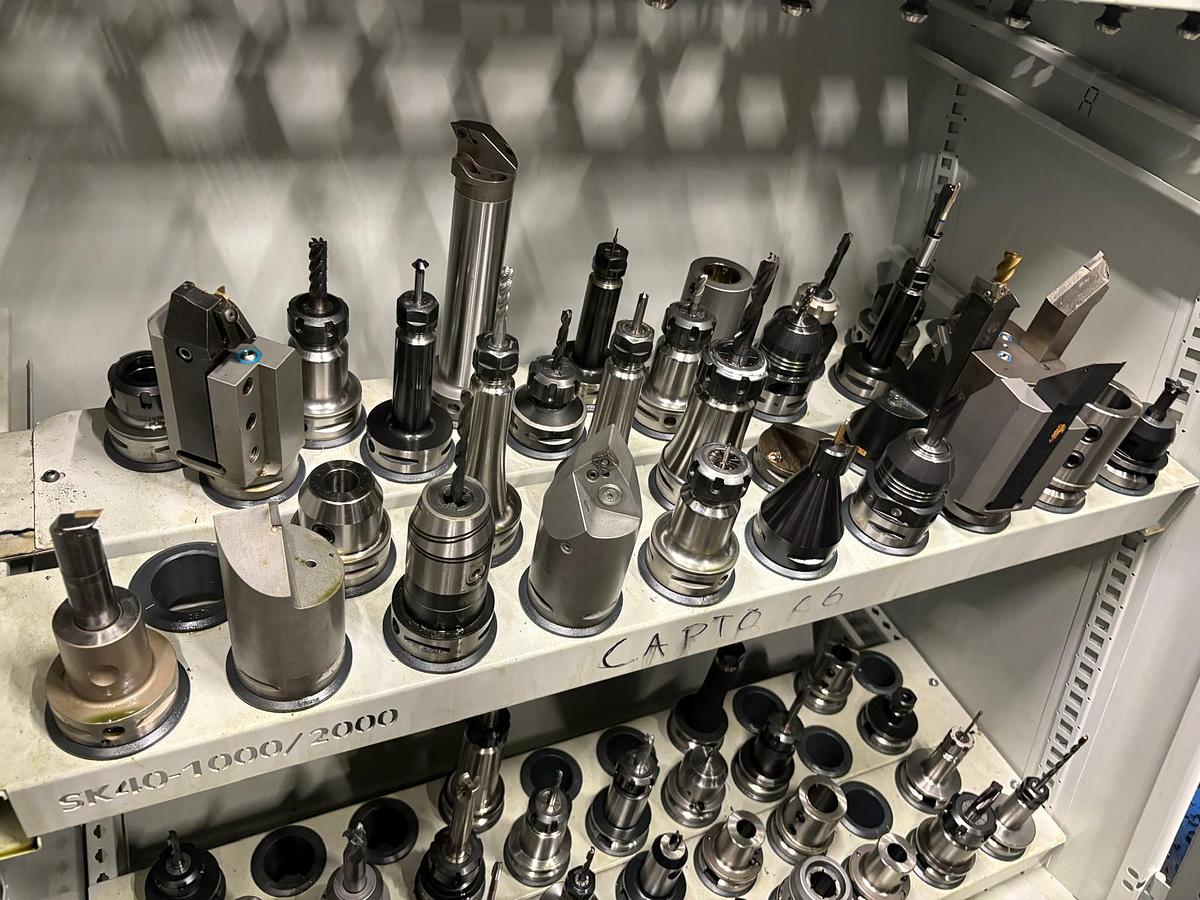

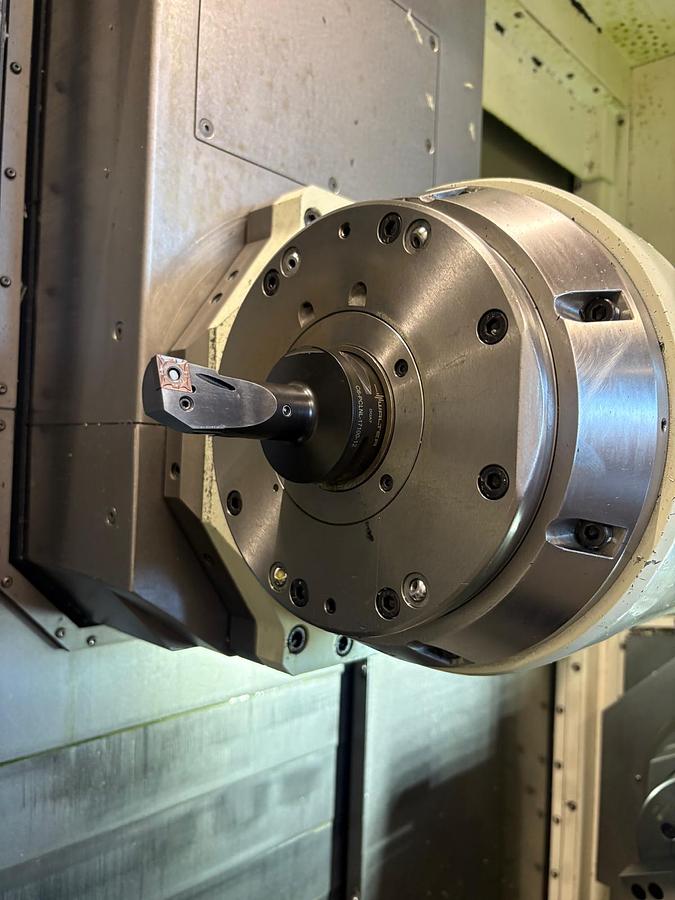

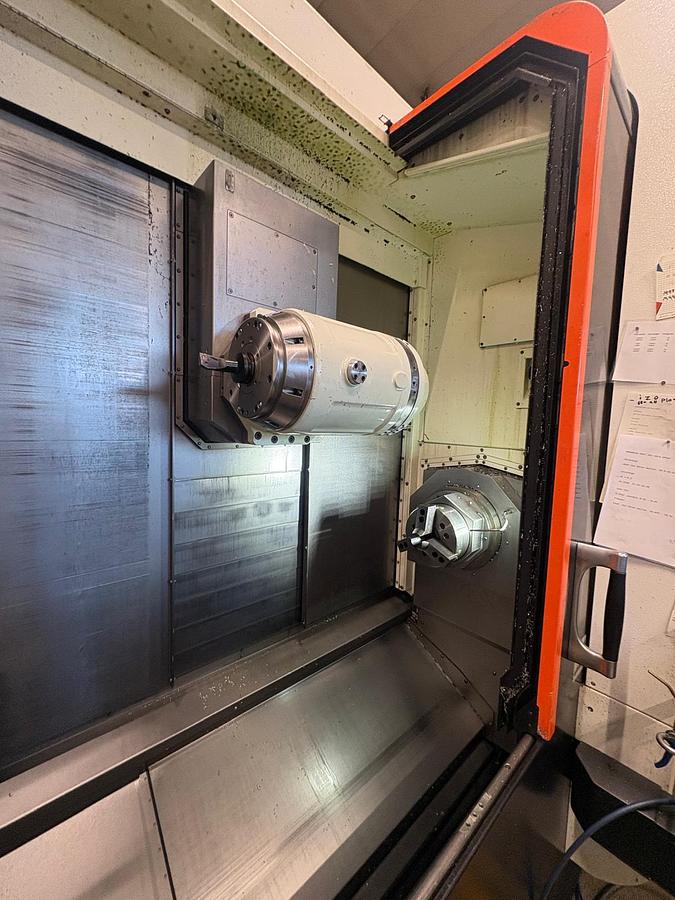

Tool Holder for rotating tools: Capto C6

Tool Holder for turning tools: Capto C6

Max Tool Weight: 12 kg

Max Tool Length: 400 mm

Clamping Force for Tool (Capto C6): 33 kN

Tool Magazine: Number of tool positions: 36 pcs

Max Tool Diameter: 90 mm

Max Tool Diameter when the position before and after is empty: 125 mm

Max Tool Length: 400 mm

Max Tool Weight: 12 kg

Max Torque for Tool: 9.8 Nm

Other:

Length: 3990/4910 mm

Width: 2800 mm

Height: 2720 mm

Weight: 13100/16600 kg

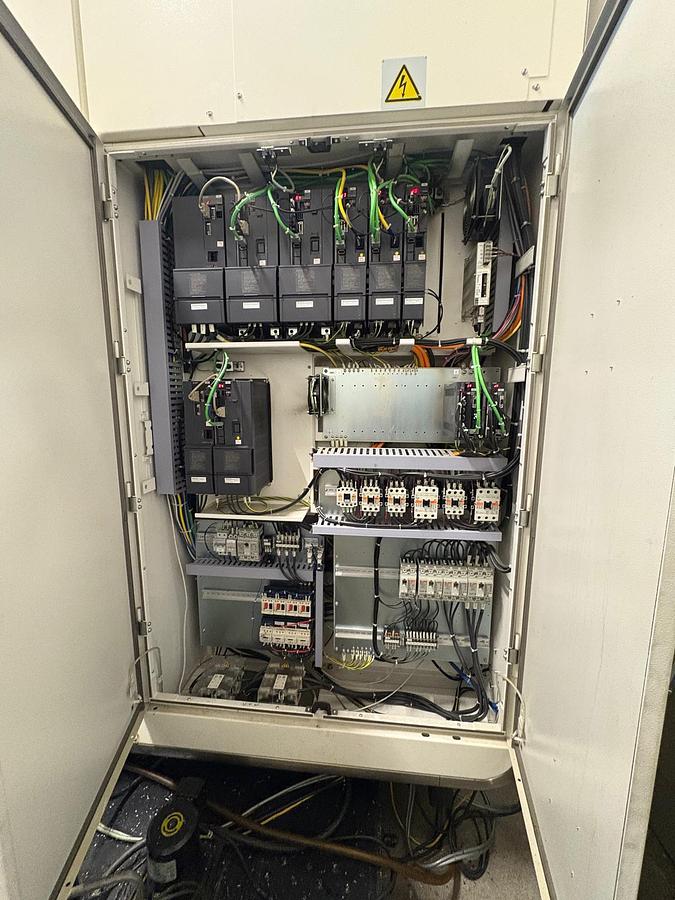

Power Requirement, continuous: 72.34 kVA

Air Requirement, min: 5 kg/cm², 410 liters/min

Tool Magazine: 36 tools

Standard Equipment:

B-axis

Capto C6

ATC Auto Recovery

Auto power on/off, heating schedule

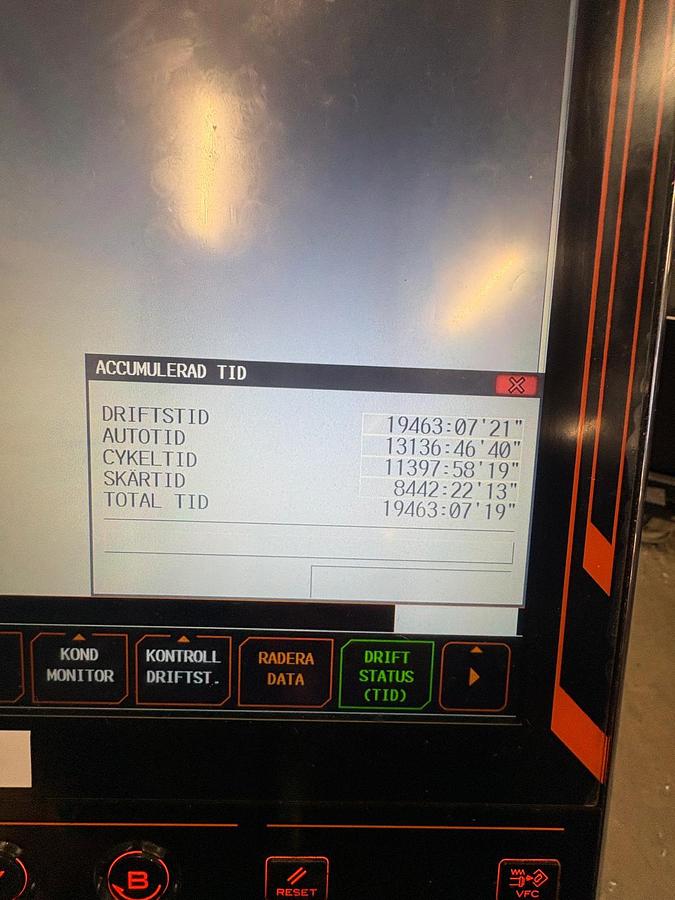

19” LCD touchscreen

Mazak tool identification system including 10 ID chips (for Capto C6)

Measurement arm for tool length setting, automatic compensation, and tool breakage detection

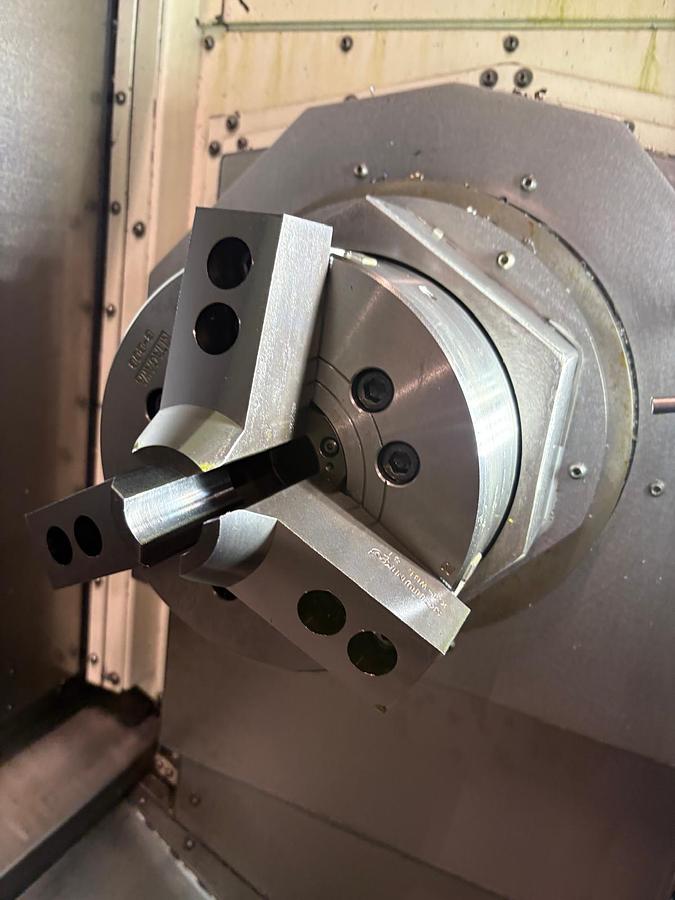

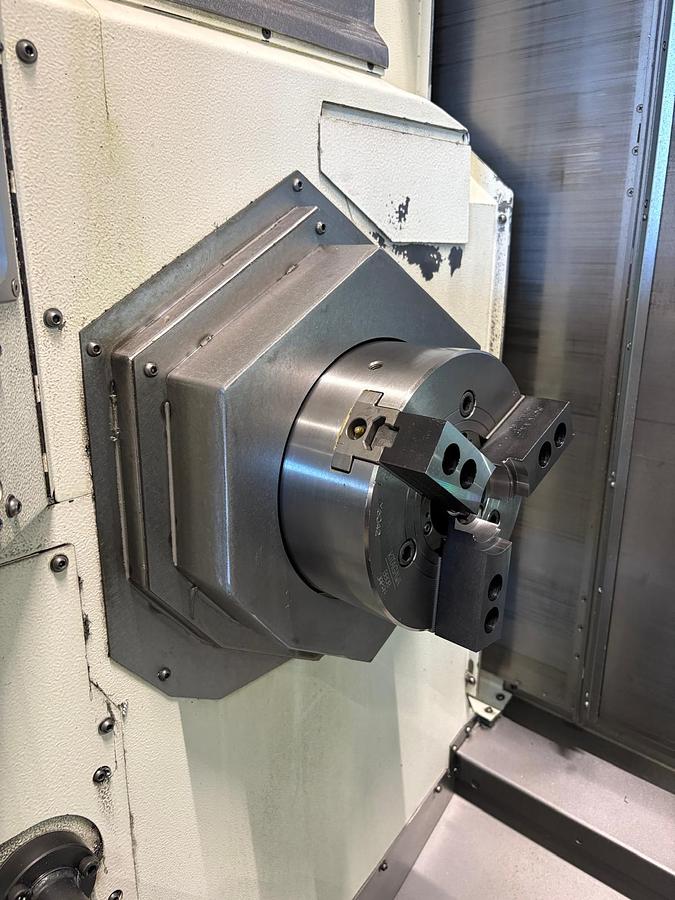

8” Chuck Type: Kitagawa B208A6

8” Chuck Type: Kitagawa B208A6

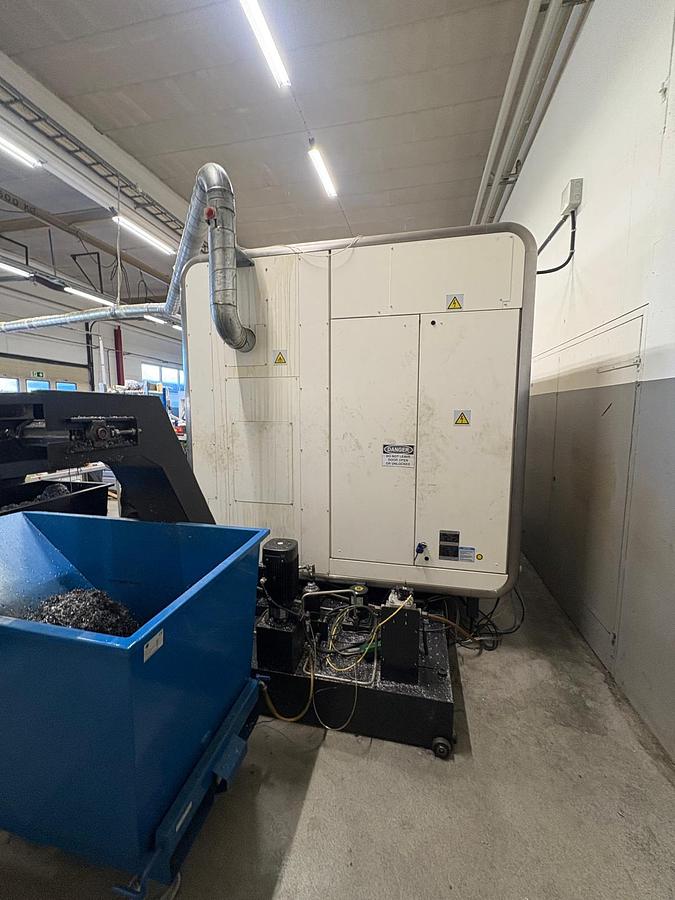

Coolant Tank

Coolant Pressure for Upper Turret: Max 5 bar, 23 l/min

Set of Manuals: (digital)

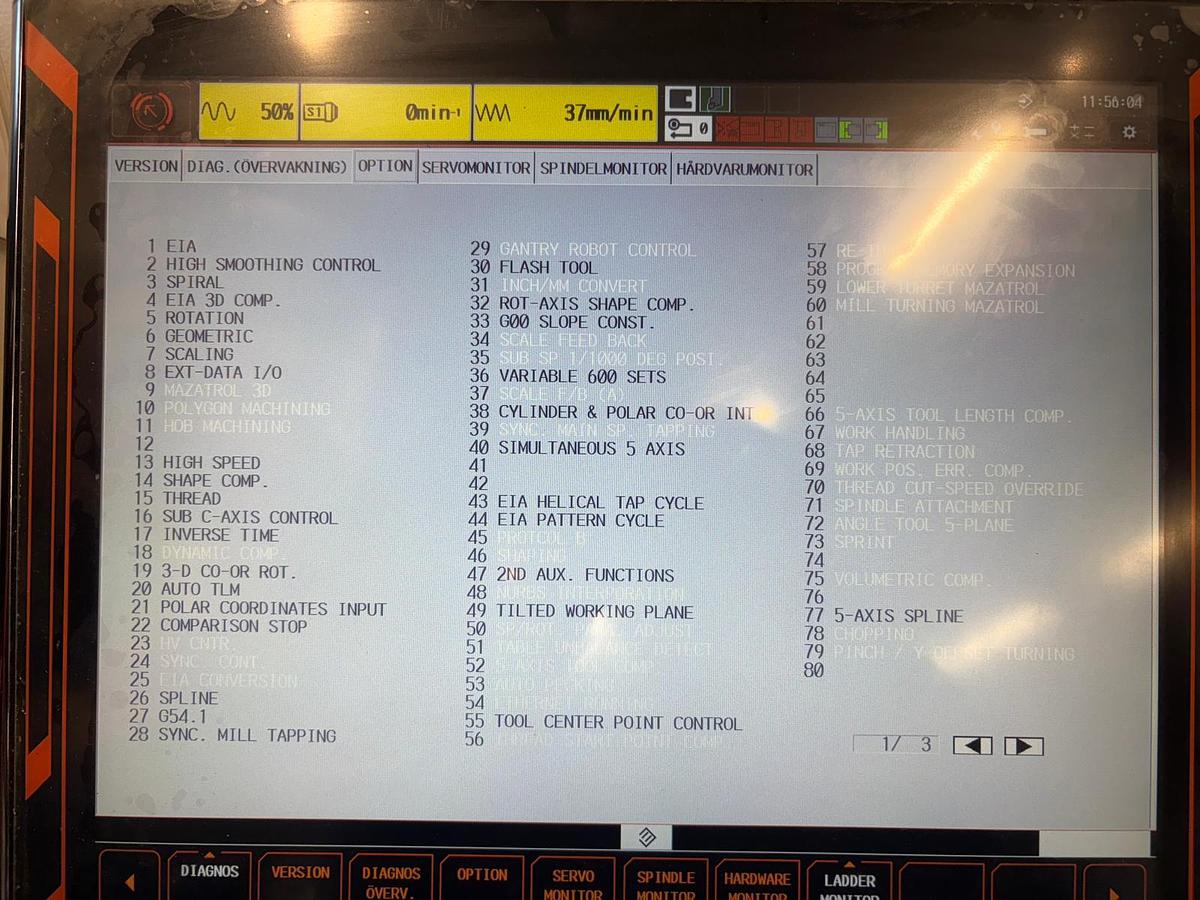

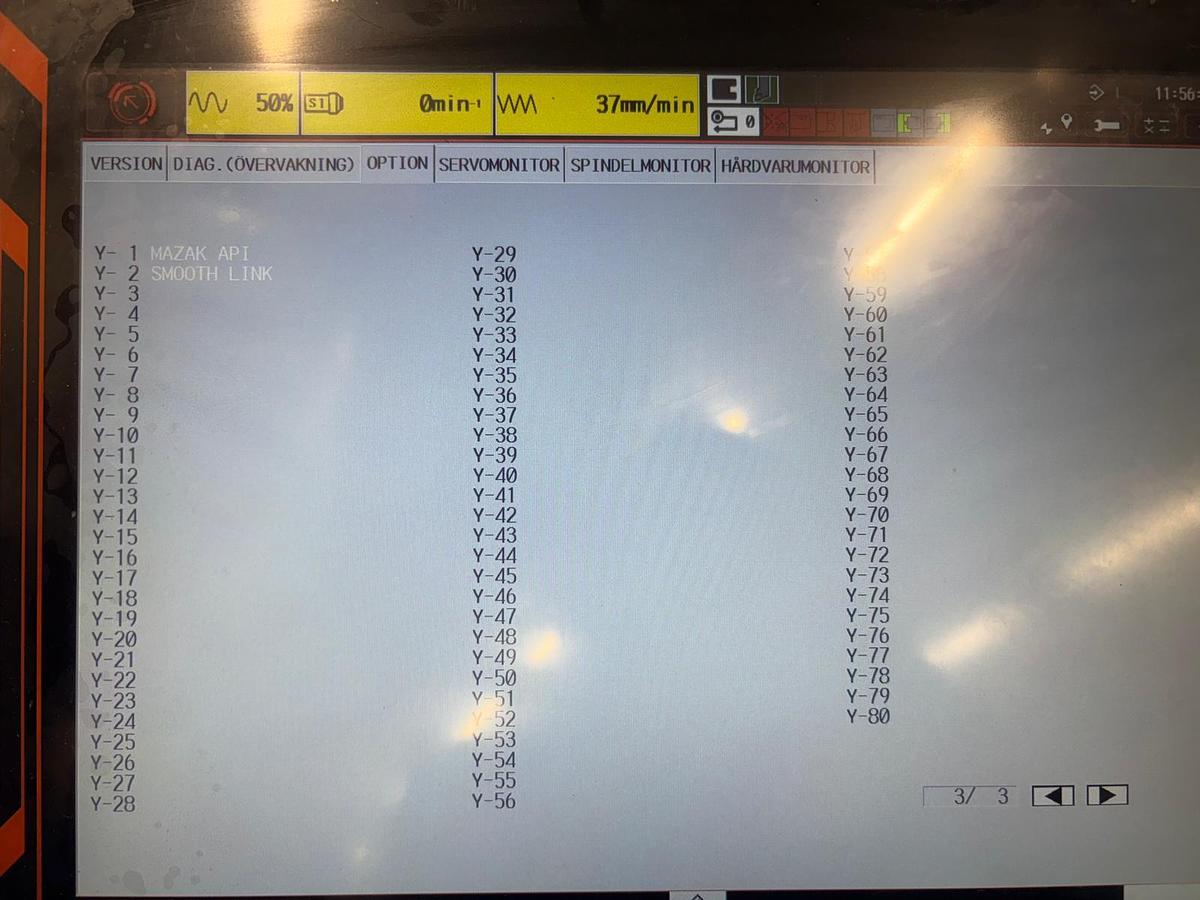

Smooth Standard Software:

Mazacc 2D software (shape comp)

Mazacc 2D software för roterande axlar (shape comp)

Mazacc 3D High Speed software

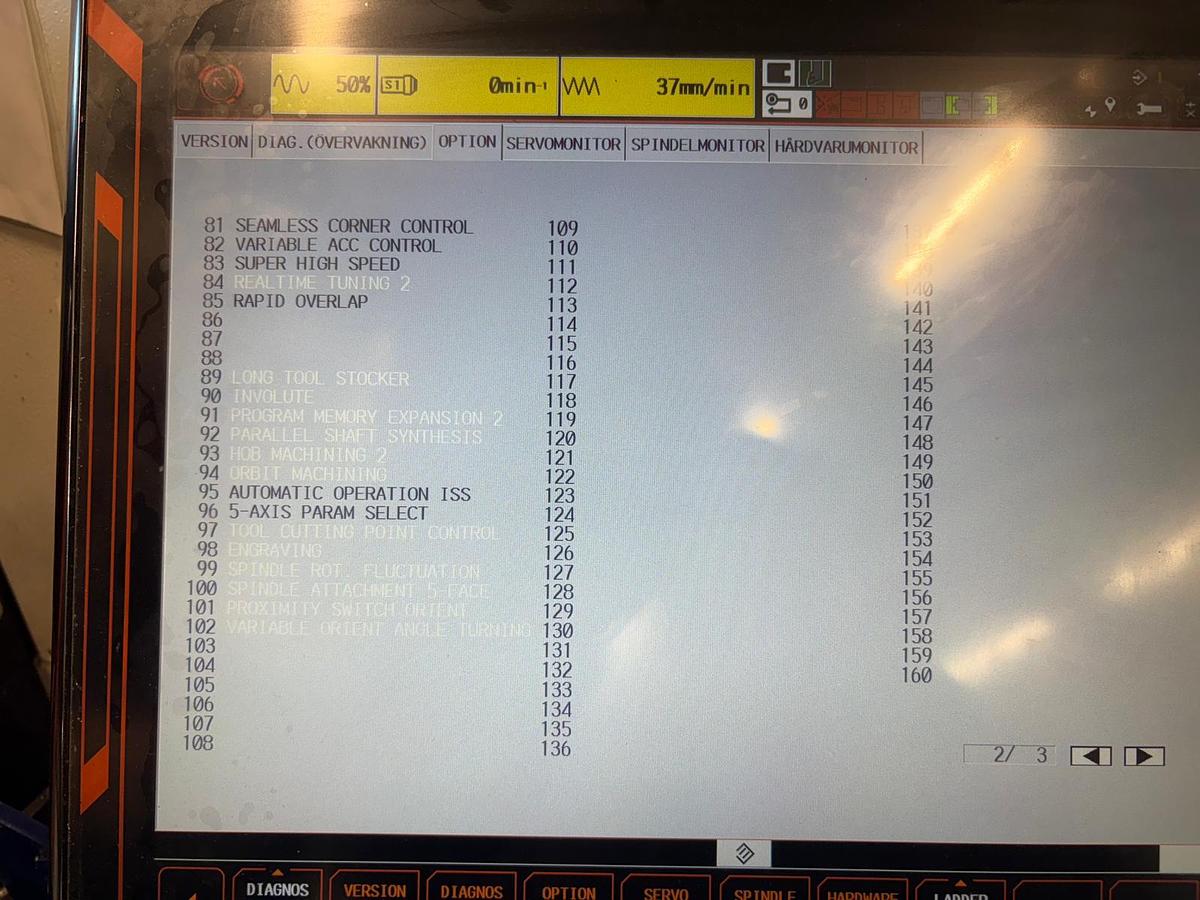

High Smoothing Control

Seamless Corner Control

Variable Acceleration Control

Ultra High Speed Machining Mode

Rapid Overlap

ISO/EIA Programming:

Lathe and milling spindle start unsynchronized

Synchronized threading with rotating tools

Macro interruption allowing event-driven ISO/EIA programs

Macro programming with 600 additional variable pairs for ISO/EIA

Helix interpolation for ISO/EIA

Coordinate rotation with G68 for ISO/EIA

Polar coordinates, G122 for ISO/EIA

Synchronized interpolation X-C-axis G12.1 for ISO/EIA

Coordinate systems G54 - G59 + 300 additional for ISO/EIA

Direct input of drawing dimensions, e.g. starting corner for ISO/EIA

Inverse Time Feed (G93)

3D Cutter Compensation (G40-G42)
