2010 Mazak

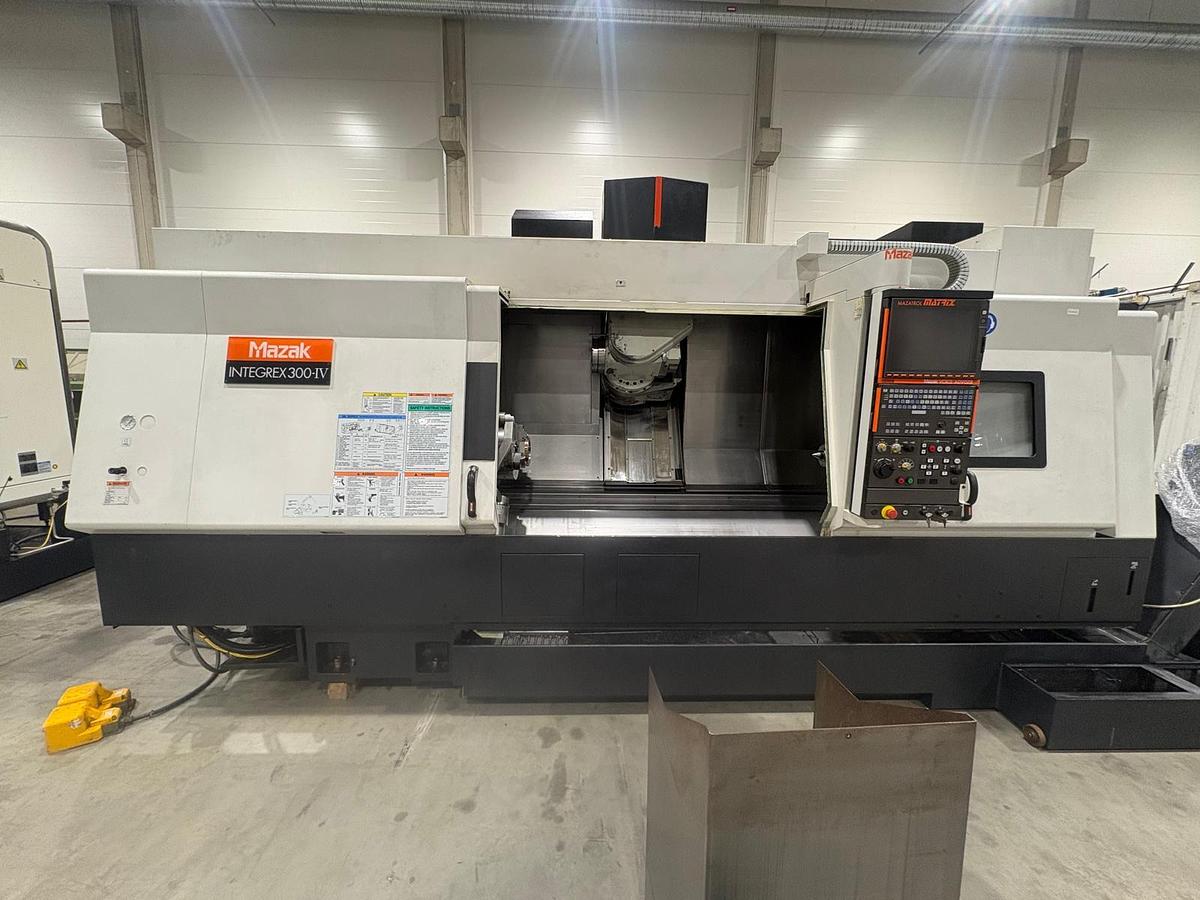

Mazak INTEGREX 300-IV – Technical Data

Year of manufacture: 10/2010

Model : INTEGREX 300-IV

Power on time: approx. 50 000 hours

General Machine Data

Machine type: Turn-mill center

Control: Mazatrol Matrix

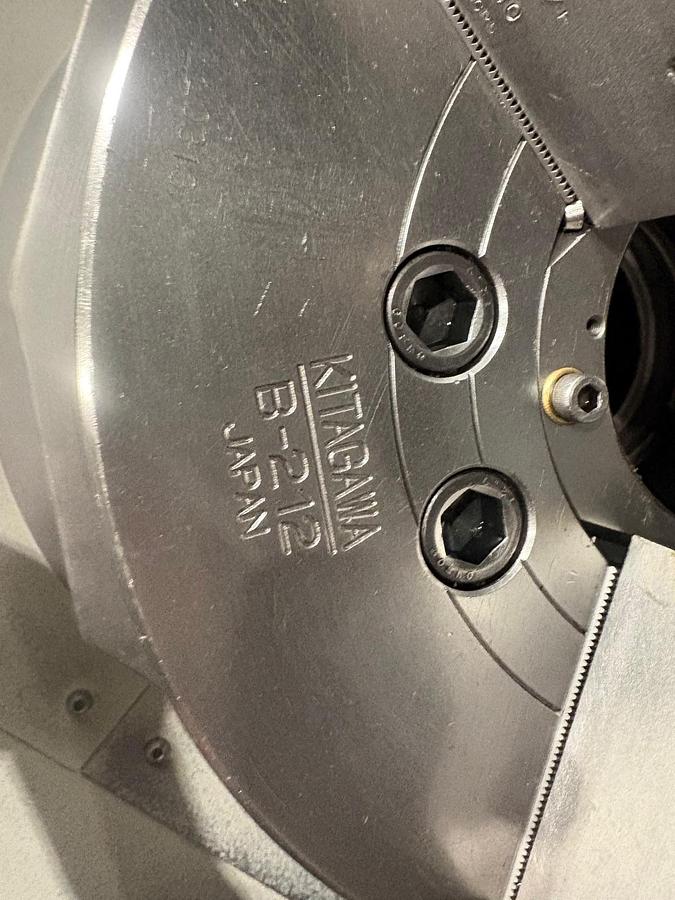

Chuck: Kitagawa B-212 (12”)

Max. turning diameter: approx. 762 mm

Max. machining length: approx. 1524 mm

Bar capacity: approx. 76 mm

Main spindle speed: 4,000 rpm

Second spindle speed: 4,000 rpm

Milling spindle speed: up to 12,000 rpm

Tool magazine: 40 stations

C-axis: 0.001°

B-axis: 0.001° indexing

X-axis travel: approx. 630 mm

Y-axis travel: approx. 230 mm

Z-axis travel: approx. 1585 mm

Main power supply: 3 AC, 400 V, 50/60 Hz

Control circuit: AC 100 V / DC 24 V

Max. current: 80 A
