2008 Deckel Maho DMU 80 MonoBlock

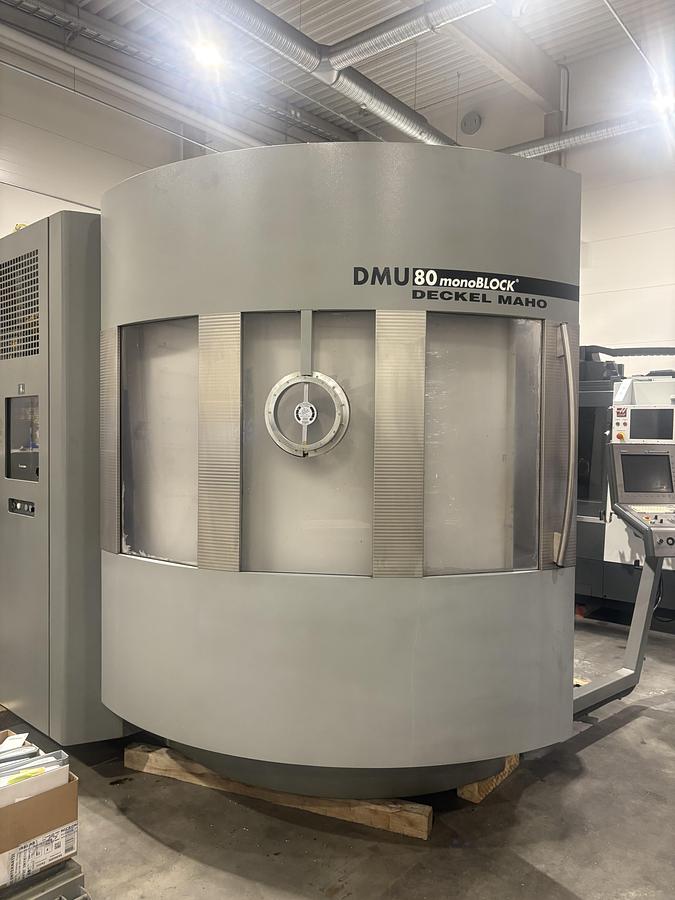

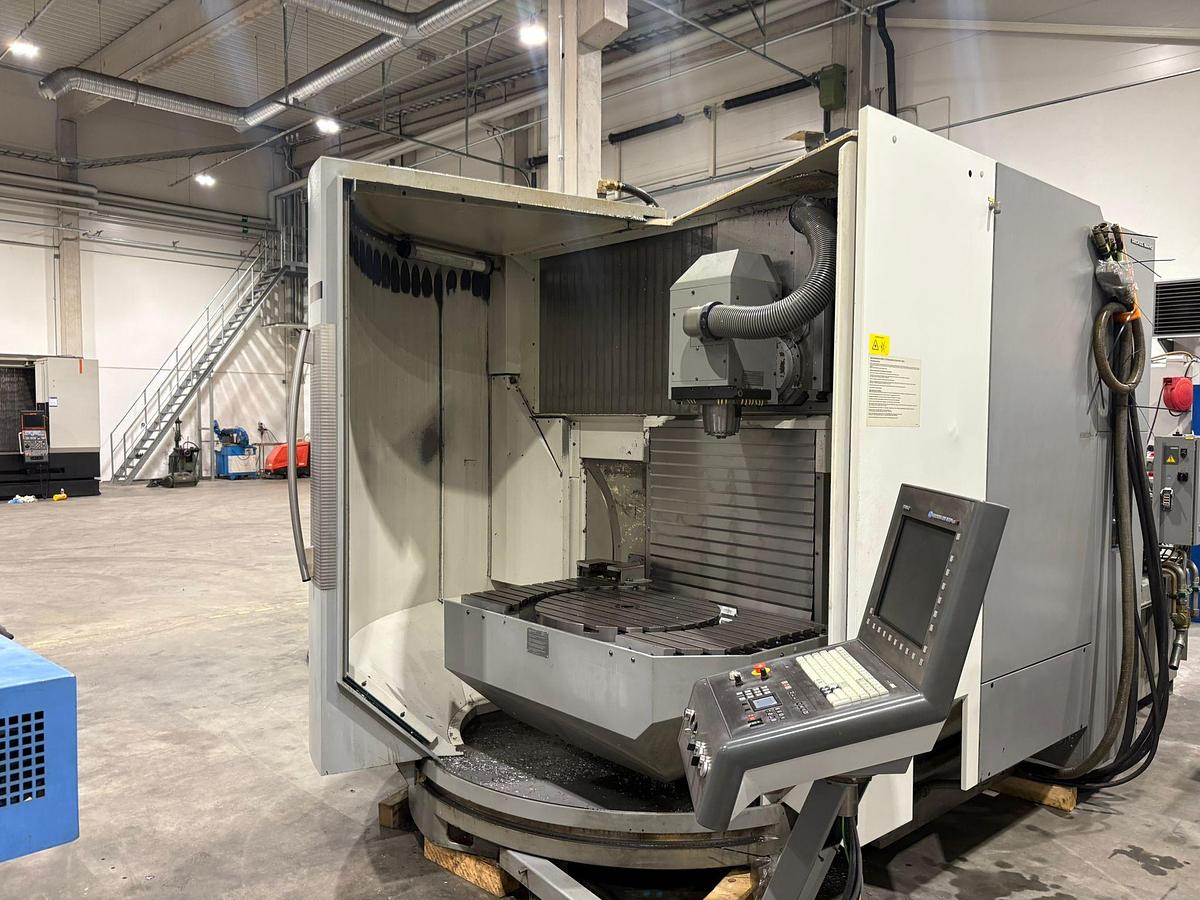

DMU 80 monoBLOCK

Universal Milling Machine

980mm x 630mm x 630mm

Main drive: Motor spindle 18,000 rpm 15 kW / 20 hp (40% duty cycle); 10 kW / 13.5 hp (100% duty cycle)

Spindle taper SK 40 to DIN 69872

Tool clamping to DIN 69871

Tool change system SK 40

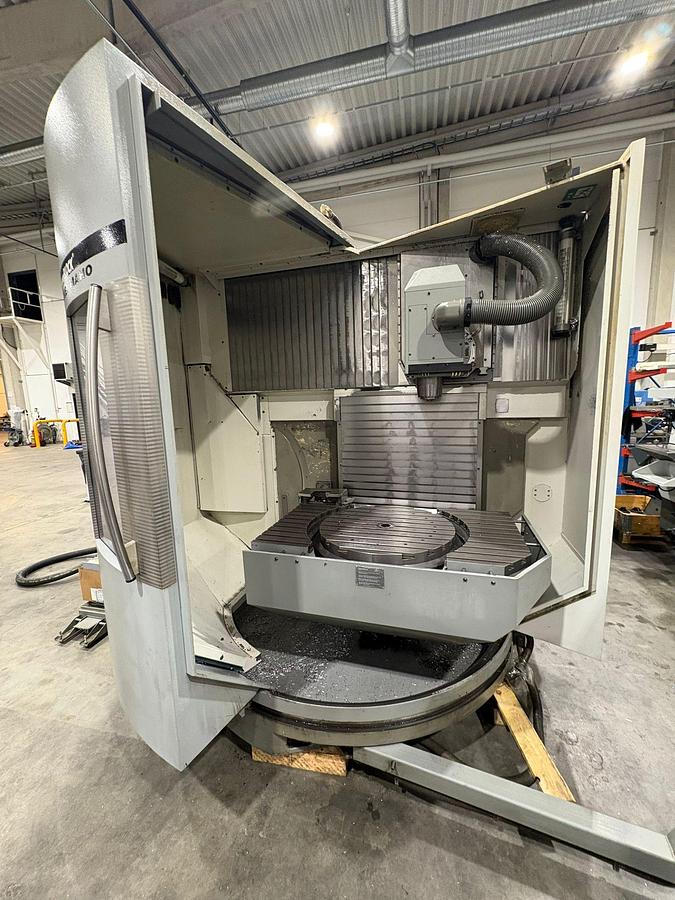

Rigid table 1,250 mm x 700 mm

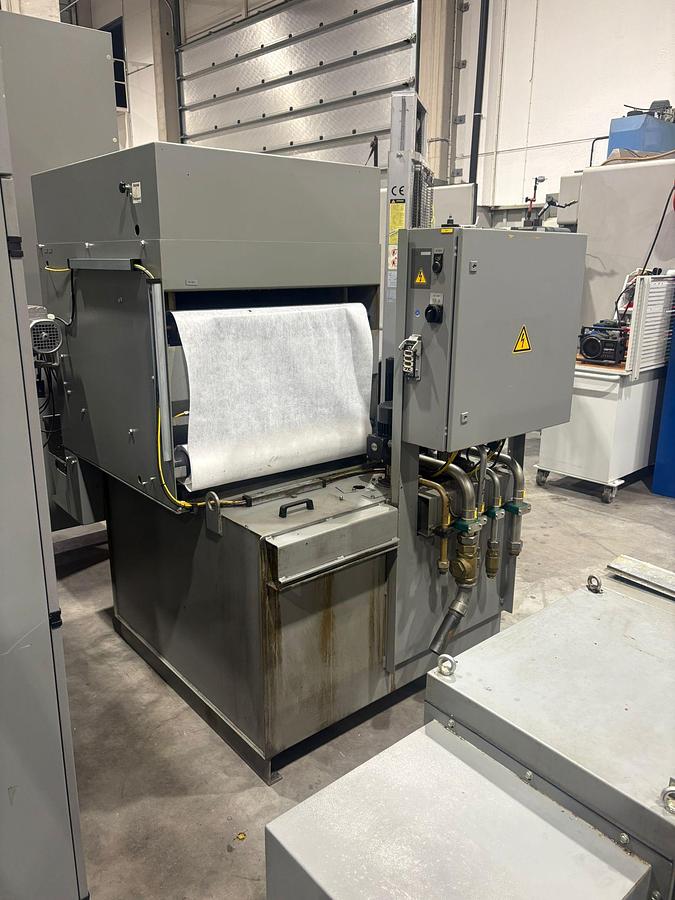

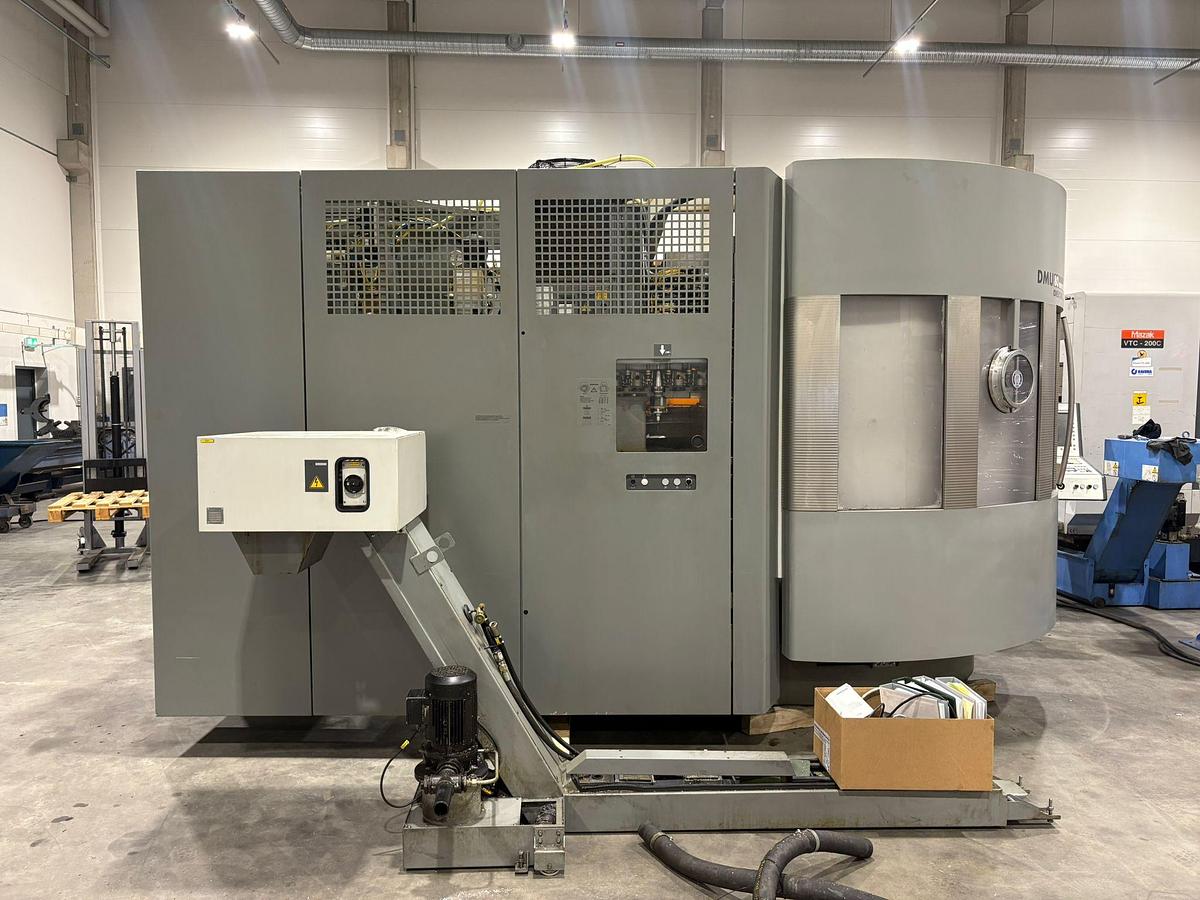

Chip conveyor

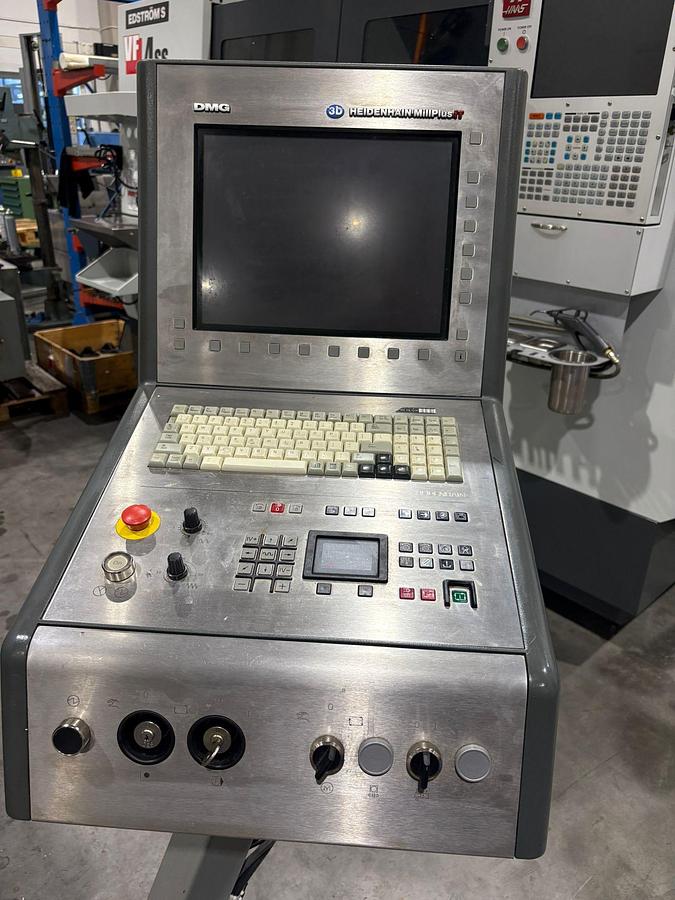

3D CNC control

3D control Heidenhain iTNC 530

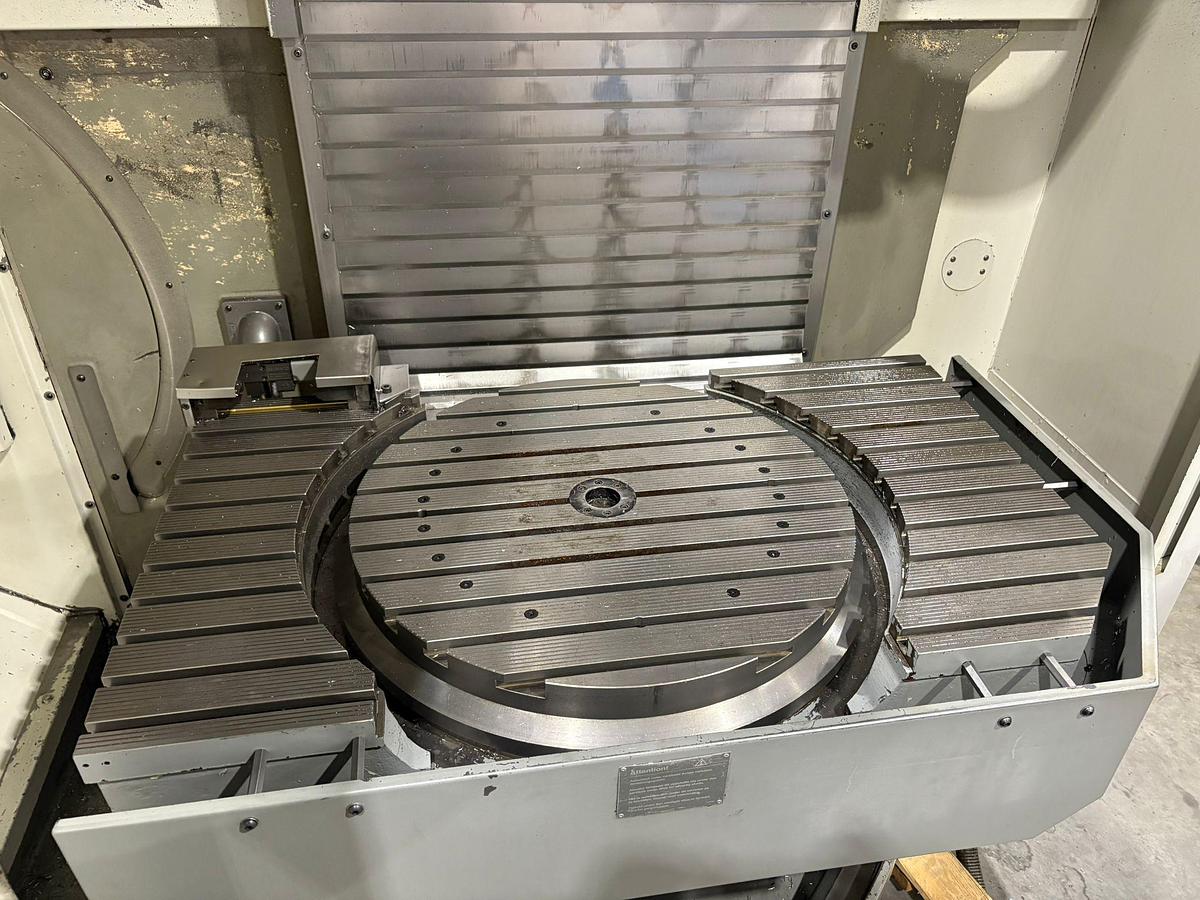

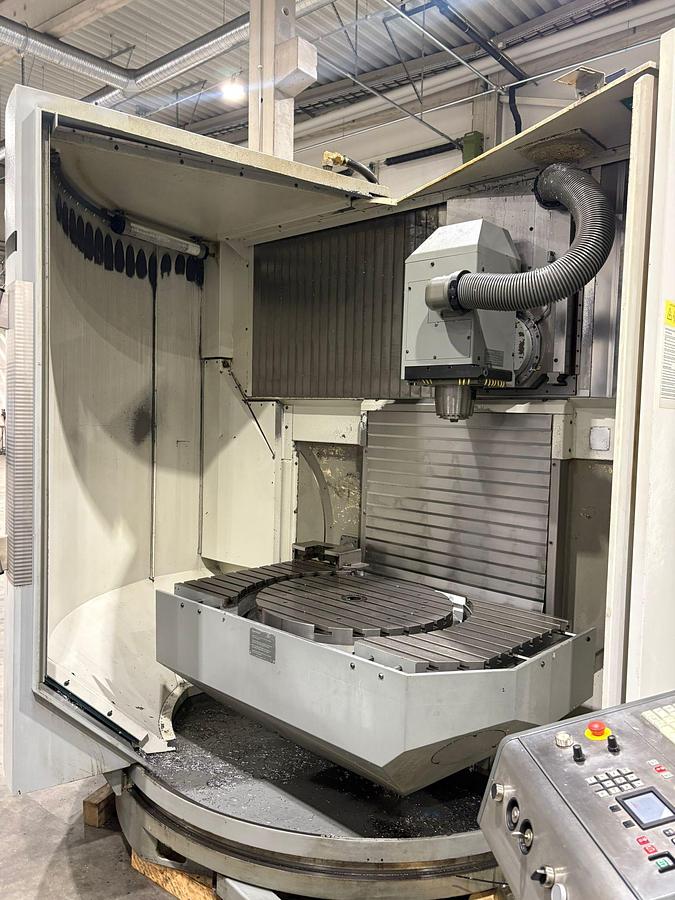

NC rotary table integrated in rigid table

d 700 mm / d 27.6 in

1,250 mm x 700 mm / 49.2 in x 27.6 in

1x T-slot 14 H7 / 0.55 H7

(alignment slot, table center)

10x T-slots 14 H12 / 0.55 H12

(clamping slots)

distance between slots: 63 mm / 2.4 in

max. table load: 650 kg / 1,430 lbs

(replaces rigid table to basic machine)

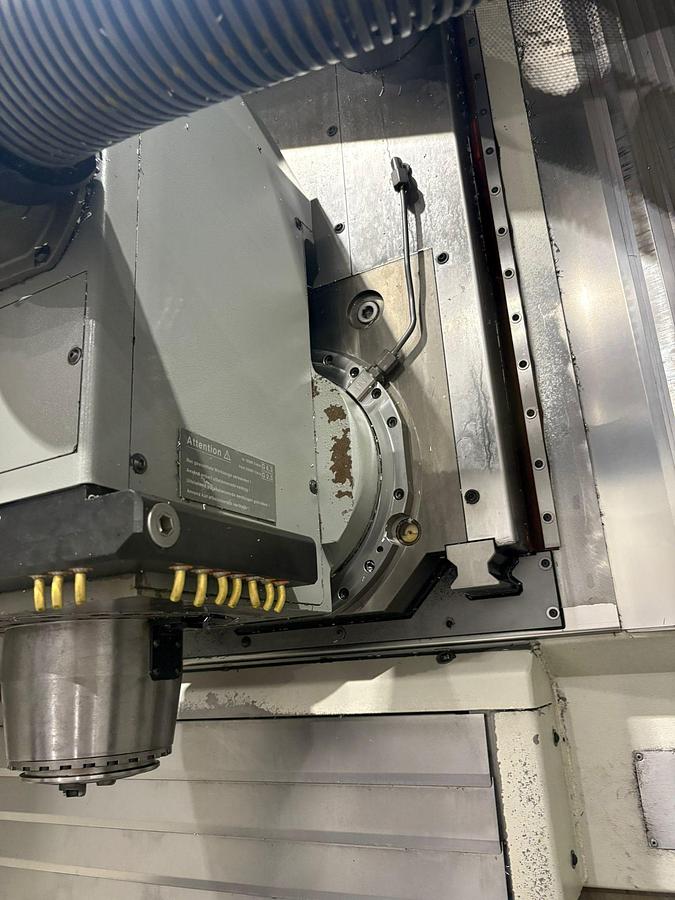

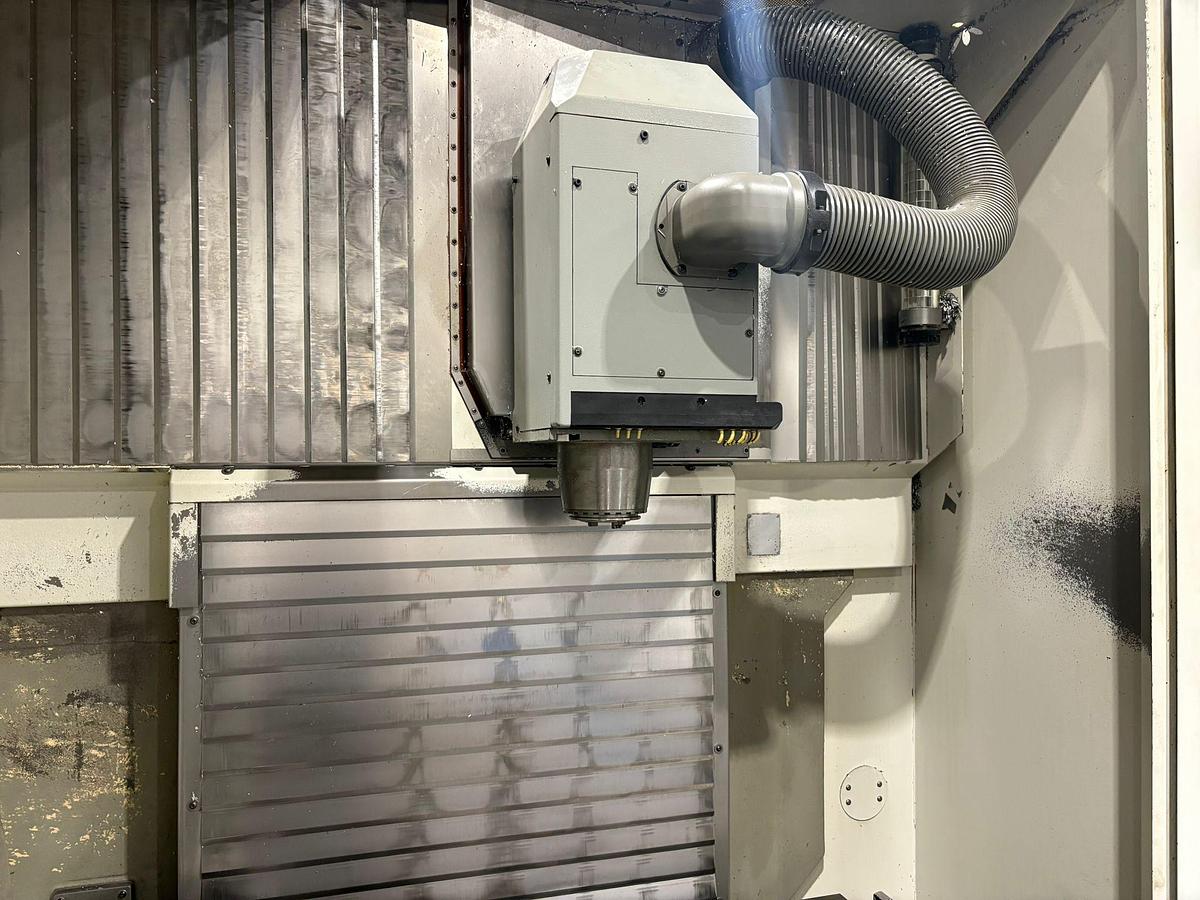

Controlled NC swivel milling head

(B-axis) incl. hydraulic clamping

Spindle offset 100 mm / 4 in

Swivel range -120°/+30°

Traverse range X-axis reduced by 100 mm / 4 in

Main drive:

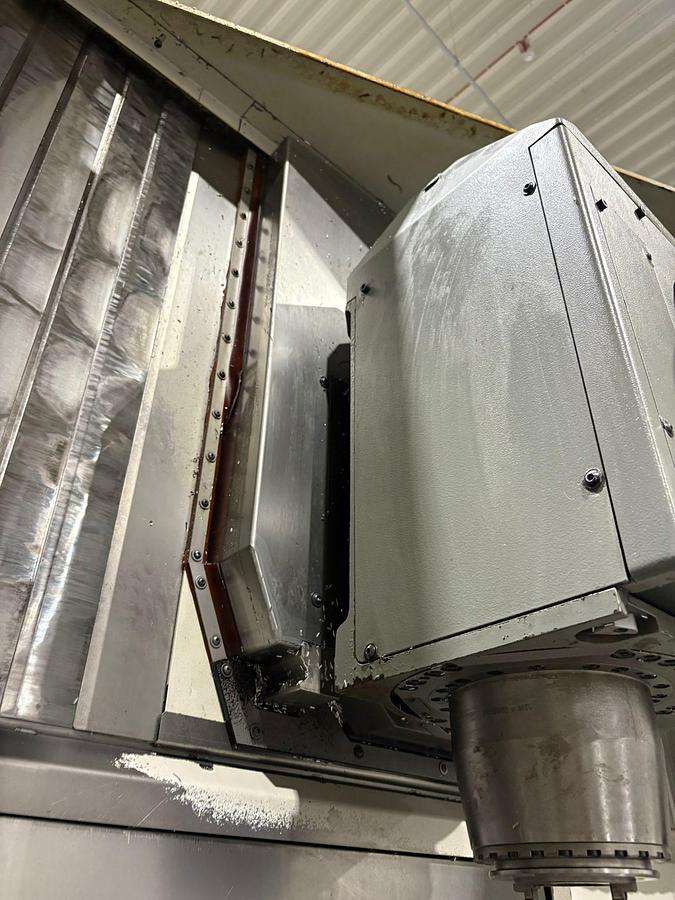

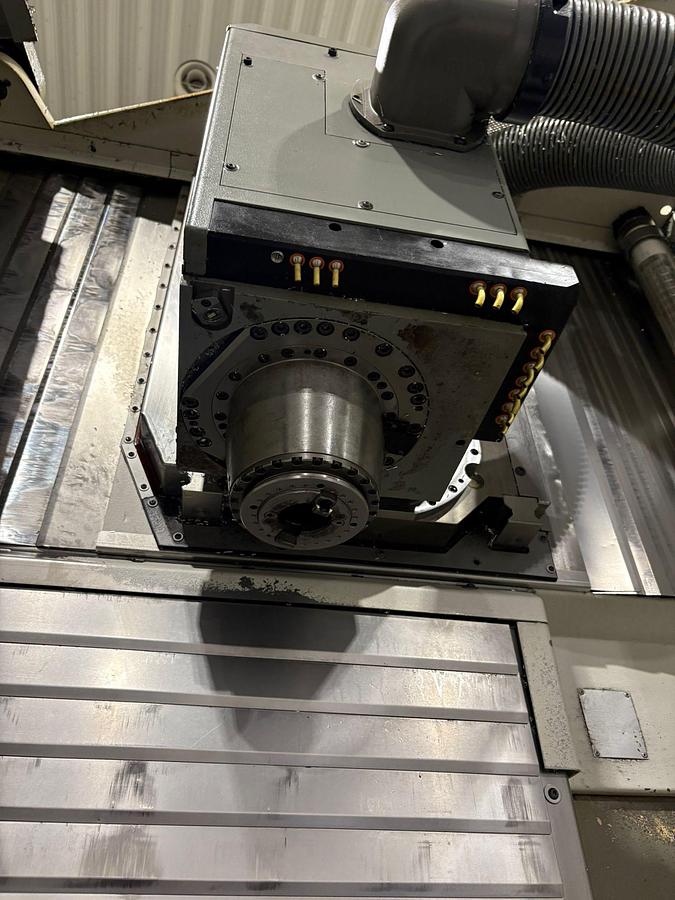

Motor spindle SK 40

Spindle speed max. 18,000 rpm

incl. active cooling

Automation / Measuring / Monitoring

Infrared measuring probe

Type Heidenhain TS 649

SK 40 or optionally chosen spindle taper

Tool measuring in machining area

Type Blum Laser

Tool length and tool diameter measuring vertically

3D quick SET

Tool kit for control and compensation of the cinematic accuracy of 5-axis machine configurations (only together with option measuring probe)

Cooling media / chip removal

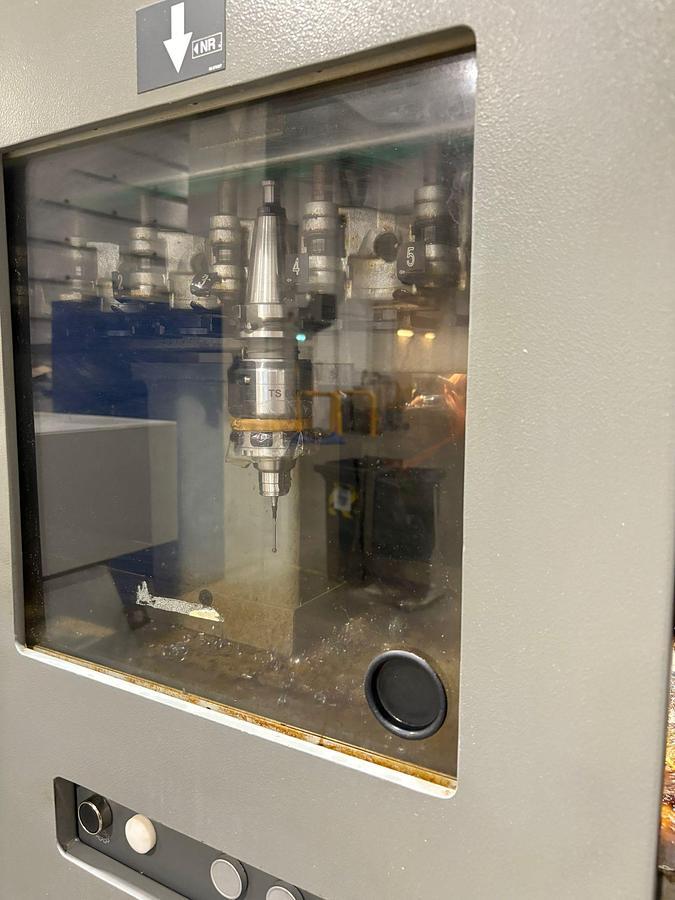

Rotating clear-view window for central glass panel cabin door

Spray gun with pump

1 bar / 40 l/min

14.5 psi / 10.4 gallons/min

General options

Operation mode 4 "Process monitoring in the production"

Manual intervention with open doors of machining area

Release after completed check list

Options iTNC 530 / MillPlus IT control

P-H0021

Electronic handwheel iTNC 530
