2011 Mazak Variaxis 500

MACHINE SPECIFICATION MAZAK VARIAXIS 500-5X II

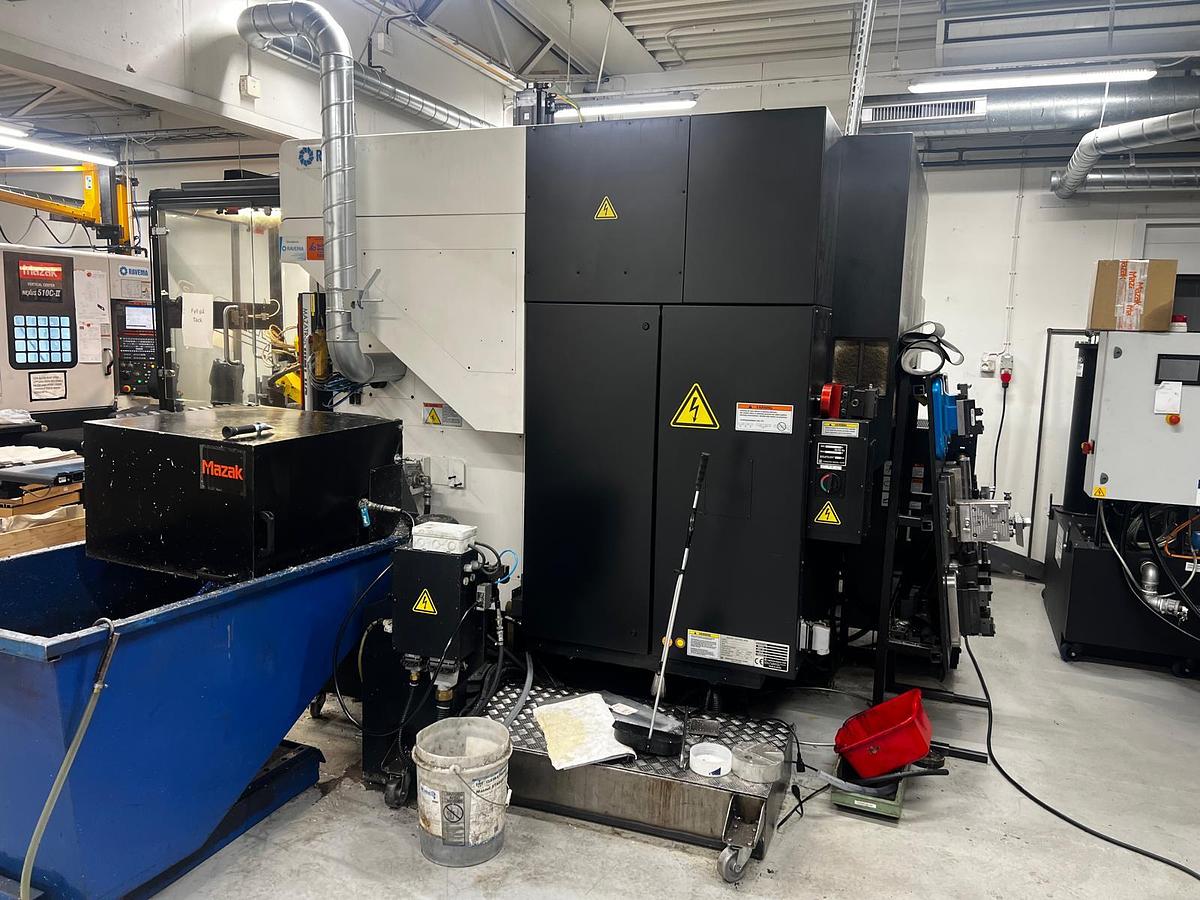

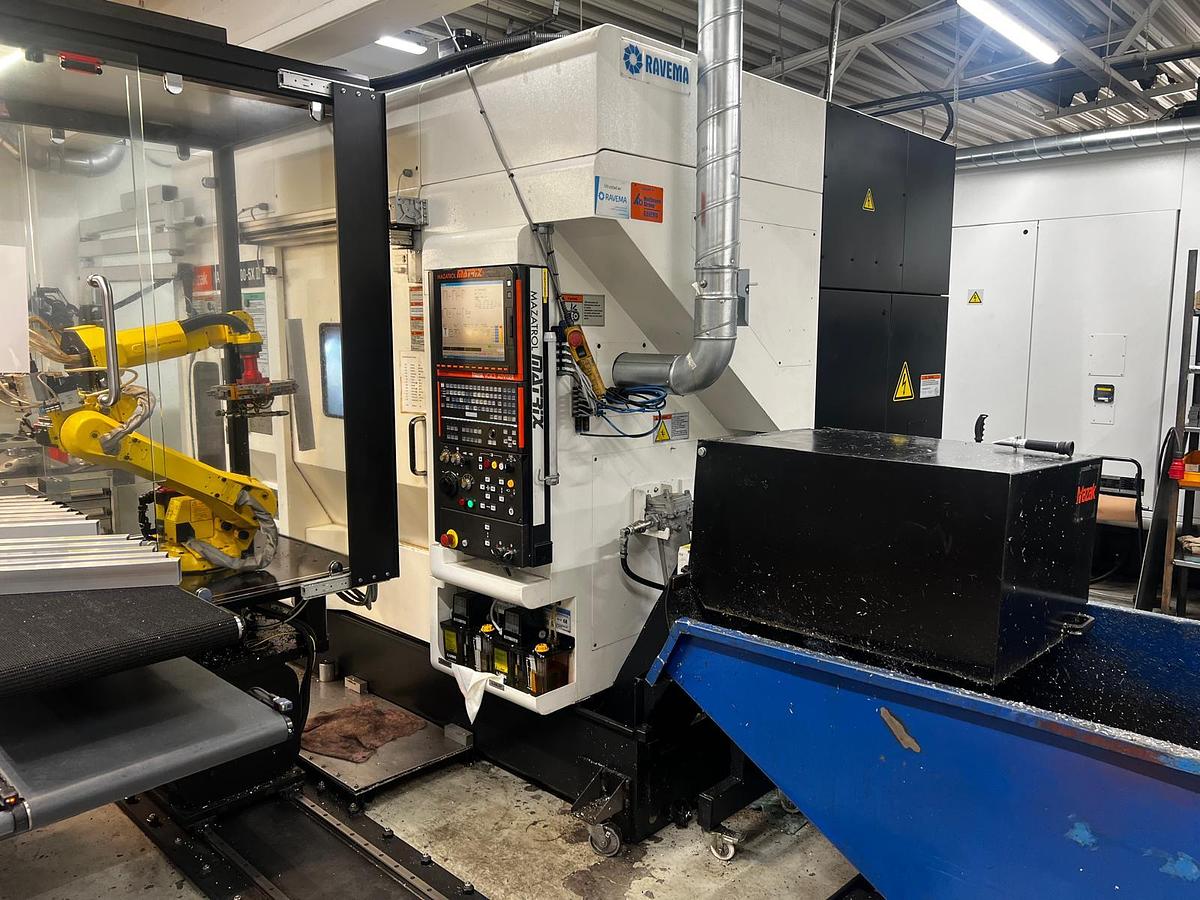

Robot is not included.

• X travel (spindle longitudinal travel): 510 mm
• Y travel (table transverse travel): 510 mm
• Z travel (spindle vertical travel): 460 mm
• A-axis (table tilt): -120° to +30°
• C-axis (table rotation): ±360°

Spindle:

• Spindle motor AC: 22.0 kW / 15 min rating
• Rapid traverse X, Y, Z: 52 m/min
• Tool magazine: 40 stations
• Spindle taper: ISO 40
• Spindle motor AC: 22.0 kW / 15 min
• Spindle bearing bore / outer diameter: Ø 80 / 110 mm
• Speed range: 35 – 12,000 rpm
• Max torque: 143 Nm @ 15% ED

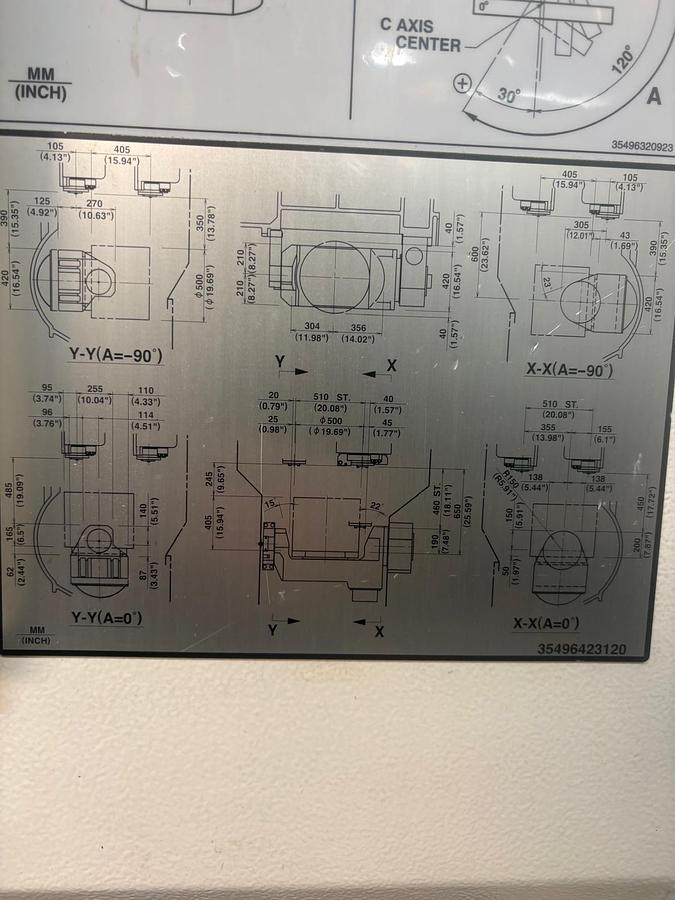

Axes details:

X-axis (spindle longitudinal travel)

• Travel: 510 mm
• Rapid feed rate: 52 m/min
• Working feed rate: 1 – 52,000 mm/min
• Guides: Linear ball guides

Y-axis (table transverse travel)

• Travel: 510 mm
• Rapid feed rate: 52 m/min
• Working feed rate: 1 – 52,000 mm/min
• Guides: Linear ball guides

Z-axis (spindle vertical travel)

• Travel: 460 mm
• Spindle nose to table top distance: 190 – 650 mm
• Spindle nose to table center distance: 140 – 600 mm
• Rapid feed rate: 52 m/min
• Working feed rate: 1 – 52,000 mm/min

A-axis (table tilt)

• Range: -120° to +30°
• Minimum positioning increment: 0.0001°
• Locking torque: 2,156 Nm
• Positioning time for 90°: 1.9 s

C-axis (table rotation)

• Range: ±360°
• Minimum positioning increment: 0.0001°
• Locking torque: 2,156 Nm
• Positioning time for 90°: 1.5 s

Accuracy:

• Positioning accuracy X, Y, Z: 0.012 mm
• Positioning accuracy A, C: 21 / 14 arc sec
• Repeatability X, Y, Z: 0.007 mm
• Repeatability A, C: 12 / 8 arc sec

Tool changer:

• Type: Chain with double arm
• Number of tool positions: 40 stations
• Tool selection: shortest path search
• Max tool diameter: Ø 80 mm
• Max tool diameter when adjacent pocket is empty: Ø 125 mm
• Max tool weight: 8 kg
• Max tool length: 300 mm
• Tool taper: CAT 40
• Pull stud: ANSI 40 type Mazak
• Tool change time (chip-to-chip): approx. 4.5 s

Table:

• Table size: Ø 500 mm x 400 mm
• Max uniformly distributed load: 300 kg
• Table equipped with T-slots: 5 slots, 80 mm pitch
• Center hole: Ø 50 H6
• Table height above floor: approx. 800 mm

Coolant:

• Through-spindle coolant: 15 bar
• Tank capacity: approx. 250 L
• Coolant filtration: filter
• Flush nozzle: at spindle nose

Miscellaneous:

• Floor space (standard machine): approx. 2805 x 2950 mm
• Machine height (standard): approx. 2838 mm
• Weight: approx. 7,500 kg
• Total fuse / power supply requirement: 50 kVA

Included / options and features:

• 40 tool stations
• Tool identification system including pull stud with ID chip
• Tool length measurement
• Through-spindle coolant 15 bar + Through-Air
• Spindle cooling
• Machine lighting
• Cooling through the ball screws on X, Y, and Z axes
• HSM function for 2-D machining
• Mazak “Tornado” for threading and milling
• Synchronized feed/speed during threading
• ISO/EIA programming
• CE marking in accordance with European regulations

VARIAXIS500II – Quantity: 1 unit

MAZAK VARIAXIS 500-II 5X

Vertical 5-axis multi-operation machine equipped with Mazatrol Matrix control system for simultaneous (ISO‑programmed) 4- and 5‑axis machining.

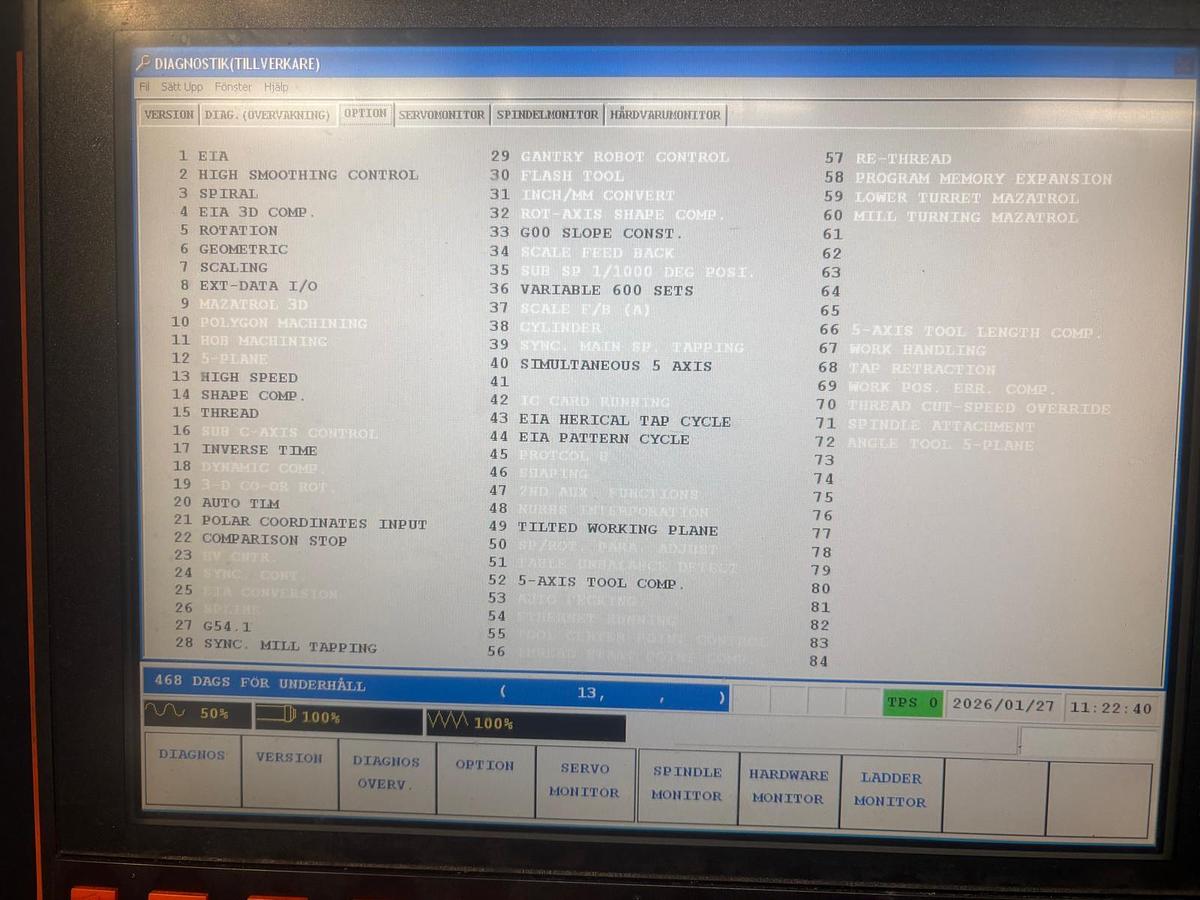

Options / items listed:

1. MAZ85330 – 1 pcs – Through-spindle coolant, 15 bar
2. MAZ80551 – 1 pcs – Chip conveyor to side
3. MAZ71190X – 1 pcs – High-speed function type 1, only for ISO/EIA

• High-speed function MAZACC-3D G05 P2
• Smooth transitions G61.1
• Contour compensation via parameter settings
