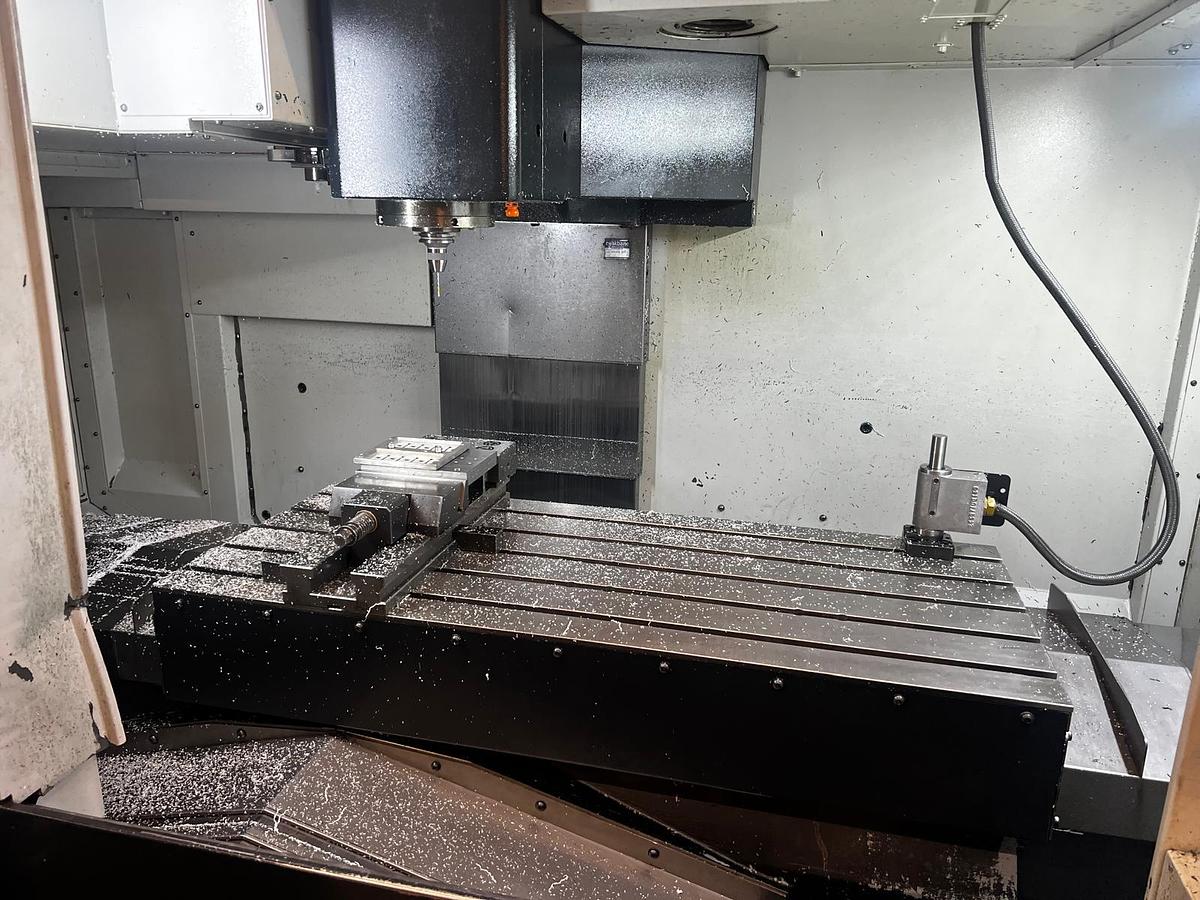

2007 Mazak NEXUS 510C - II

Main data

• X travel (table longitudinal travel): 1050 mm
• Y travel (table transverse travel): 530 mm
• Z travel (spindle vertical travel): 510 mm

Spindle

• Spindle motor: AC 18.5 kW (5 min rating)
• Rapid traverse X / Y / Z: 36 / 36 / 36 m/min
• Tool magazine: 30 stations
• Spindle taper: ISO 40
• Spindle bearings: Ø 70 / 110 mm
• Speed range: 12,000 rpm
• Number of speed ranges: Direct drive
• Max torque: 95.5 Nm

X-axis

• X travel (table longitudinal travel): 1050 mm
• Guides: Linear ball guides

Y-axis

• Y travel (table transverse travel): 530 mm
• Rapid feed: 36 m/min
• Working feed rate: 1 – 36,000 mm/min
• Guides: Linear ball guides

Z-axis

• Z travel (spindle vertical travel): 510 mm
• Spindle nose to table top distance: 150 – 660 mm
• Distance from column to spindle center: 576 mm
