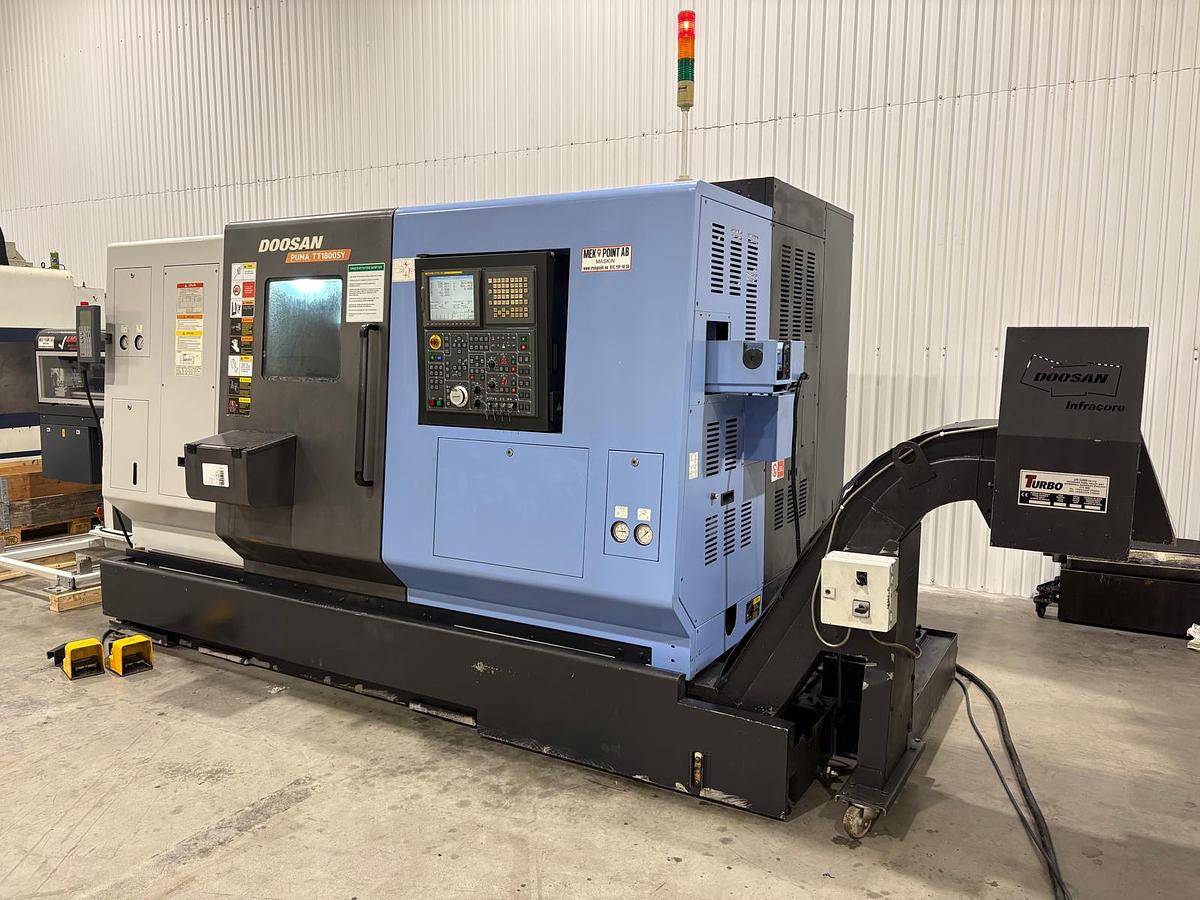

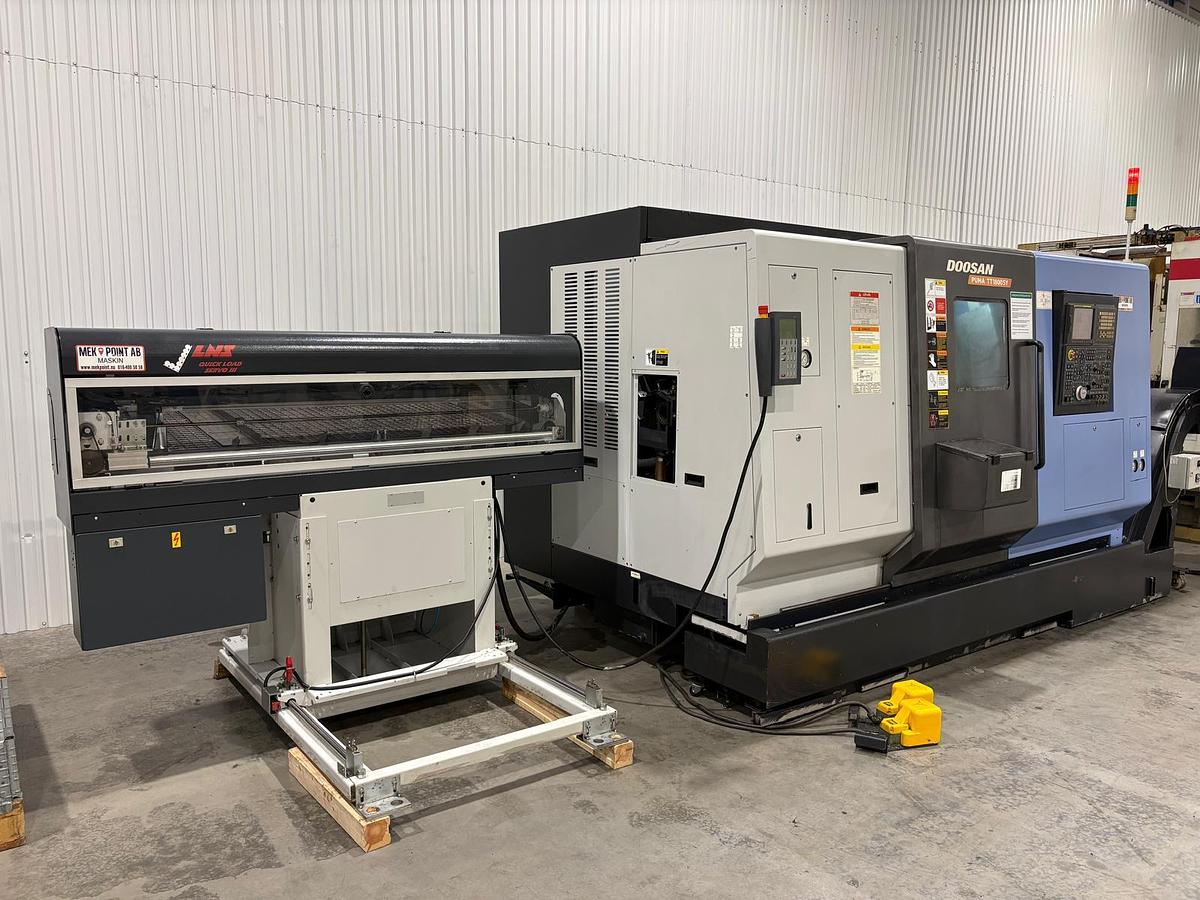

2007 Doosan TT 1800 SY

Turning diameter 300 mm

Turning length 600 mm

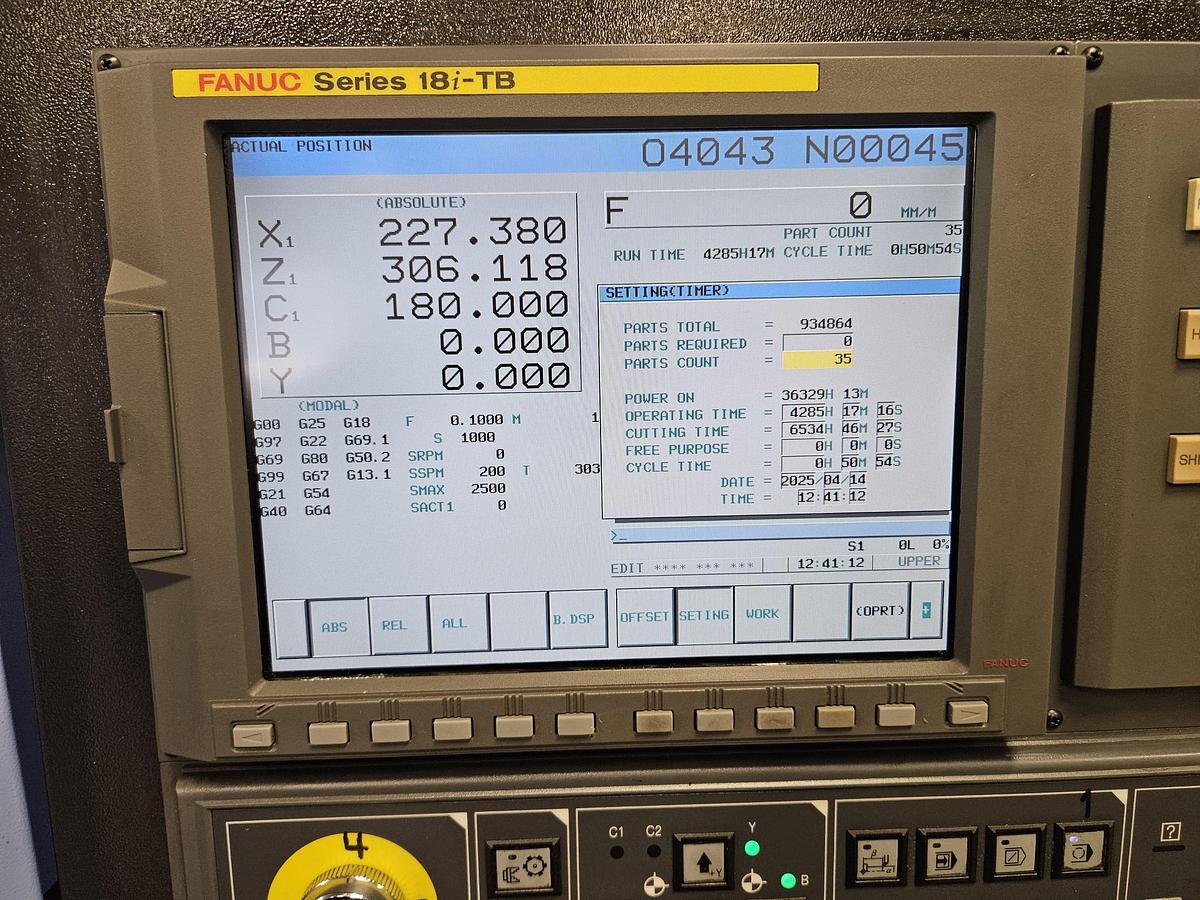

Control FANUC, 18i-TB

Turning diameter over bed slide 230 mm

Travel x1 165 mm

Travel z1 700 mm

Travel x2 190 mm

Travel z2 720 mm

Travel -y axis +/- 50 mm

Main spindle bore 76 mm

Main spindle speed 5.000 U/min

Main spindle drive 22 kW

Max. torque on the spindle 208 Nm

Sub spindle bore 76 mm

Sub spindle speed 5.000 U/min

Sub spindle drive 22 kW

Max. torque on the spindle 208 Nm

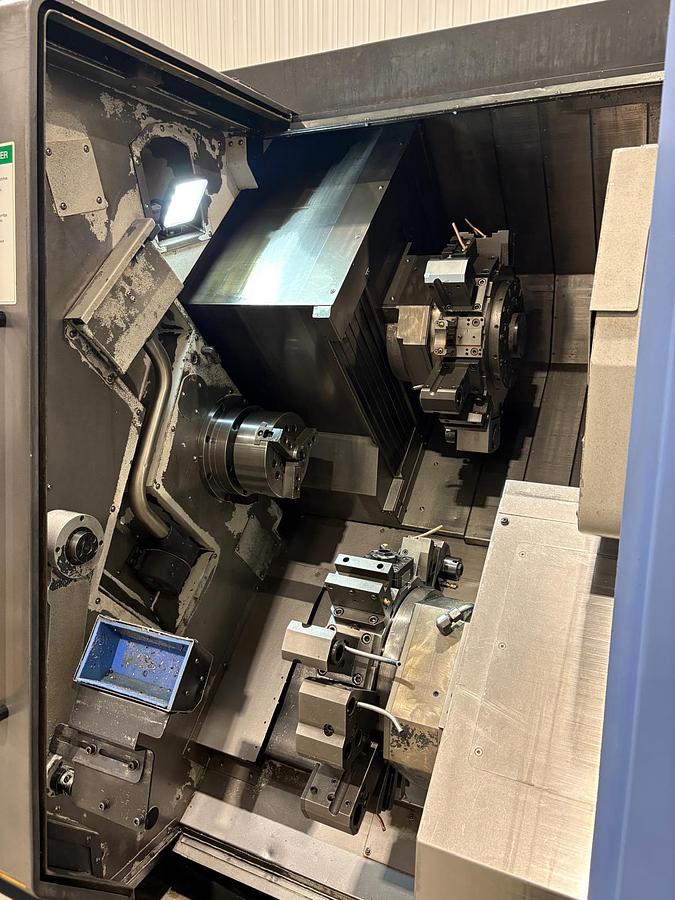

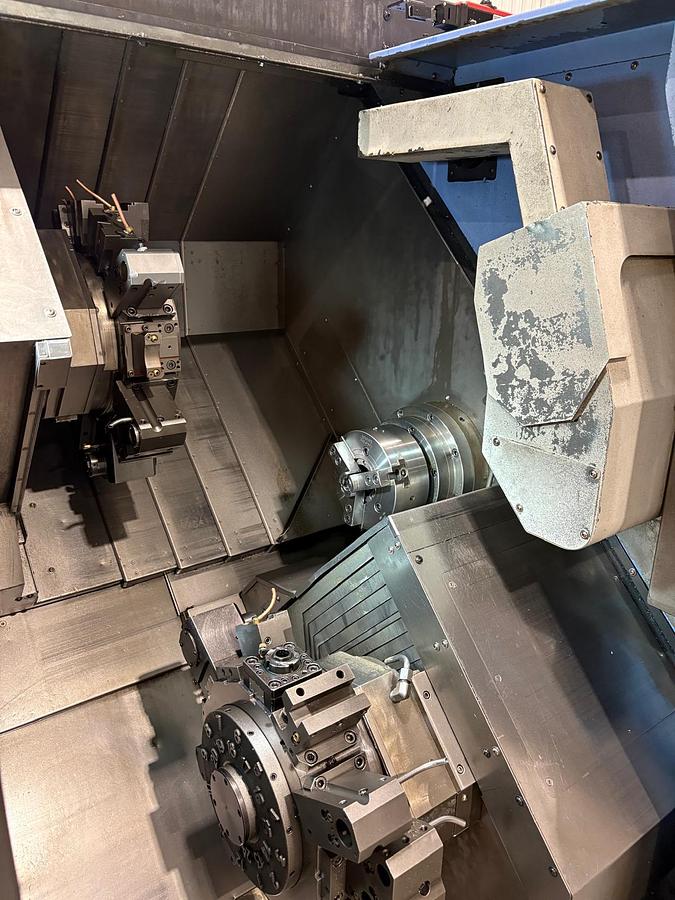

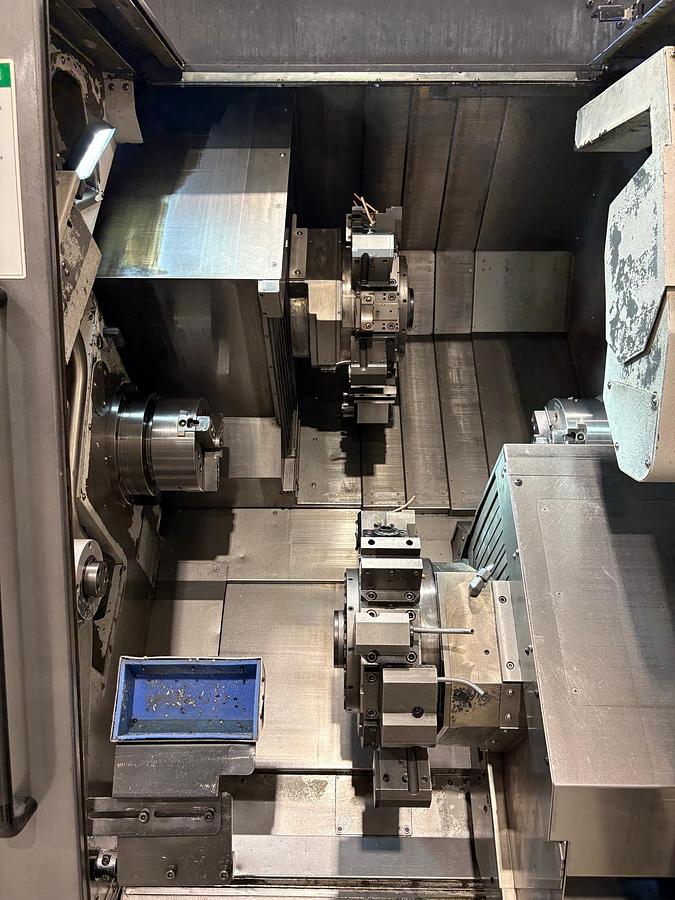

Tool turret 2 x 12 Stat.

Number of driven tool stations 2 x 12

Speed of driven tools 5.000 U/min

Max. torque 47 Nm

Work piece power 5,5 kW

C-axis resolution 0,001 °

Rapid traverse x + z axis 20 / 40 m/min

Rapid traverse y-axis 7,5 m/min

Total power requirement 68,4 kVA

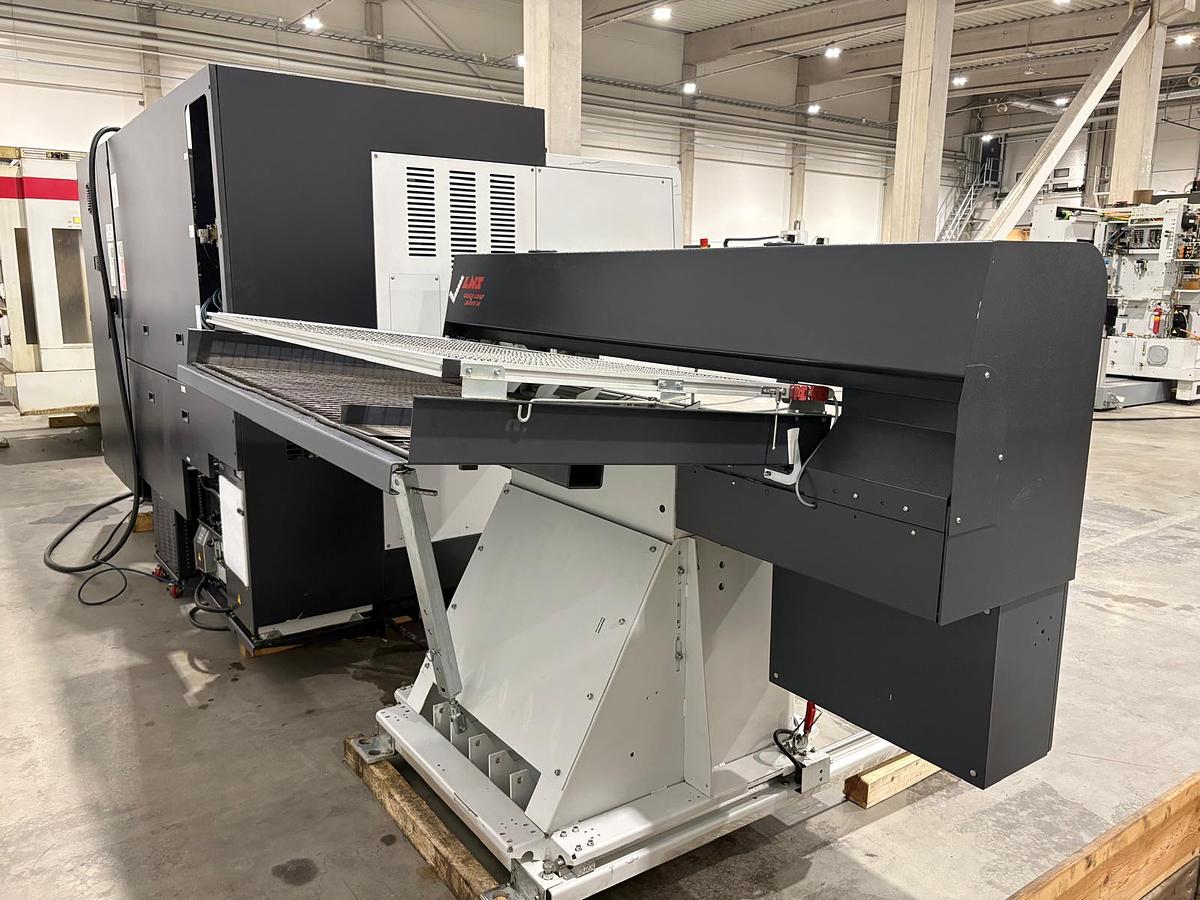

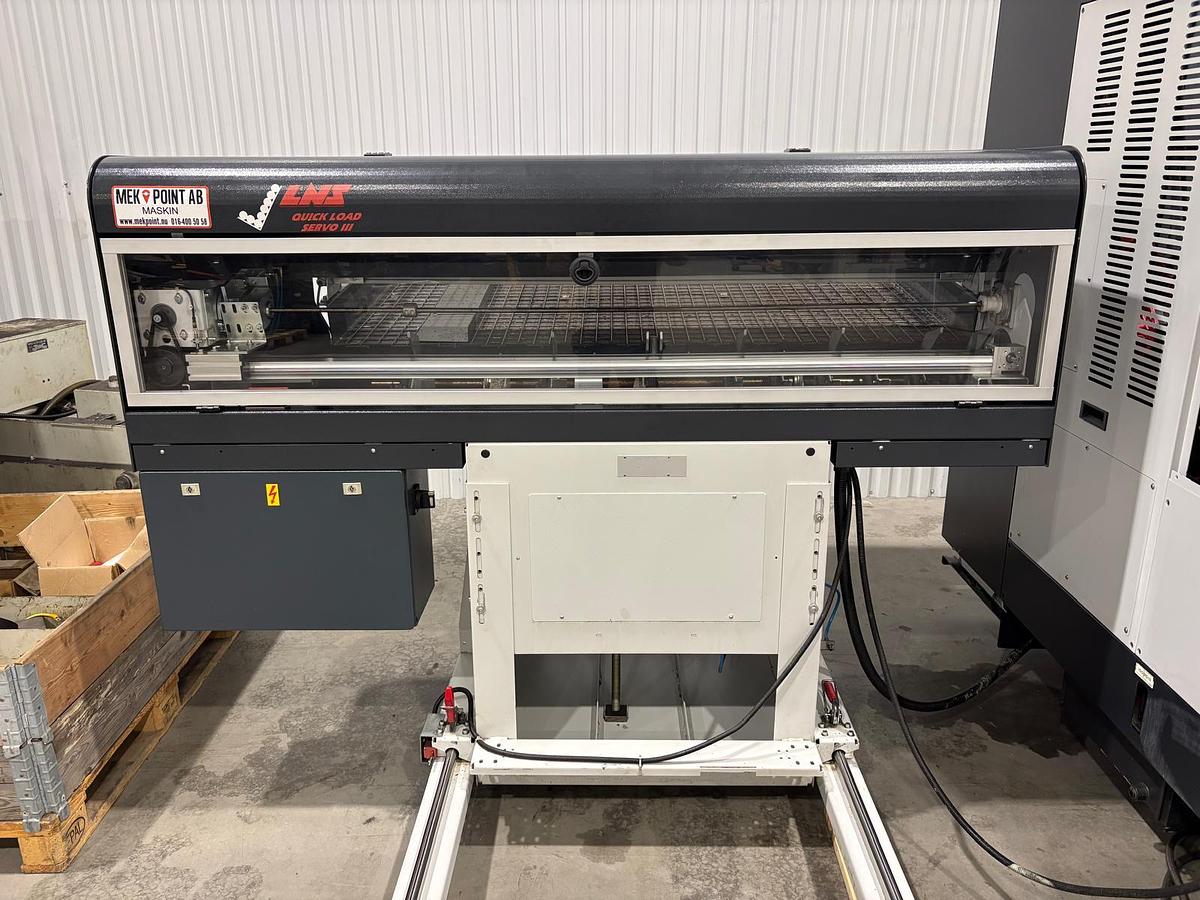

Included Bar feeder, Tools and driven tools.
